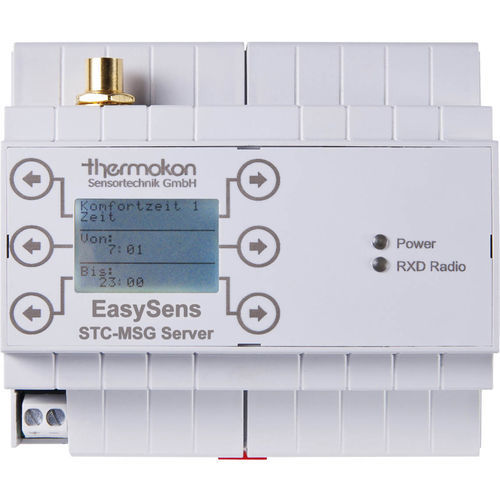

Communications server STC-MSG

DIN rail

The STC-MSG server is used for stand-alone solutions in combination with EasySens® room operating units and up to 8 or 16 SAB+/SAB05 radio valve actuators. An integrated scheduler can be individually set up as well as window contacts/handles can be learned in for increased energy savings. The parameterization of individual functions can be conducted through an integrated configuration menu using the display and respective buttons. The delivery content includes an external antenna for achieving best possible transmission range. • Application/type : Actuator • Purpose : Room Climate Control • Interface : EnOcean (868 MHz) • Functions : to control valve actuators SAB • Configuration : buttons • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, 902 MHz, transmission power <10 mW • Data transmission : bidirectional, 8 channels, 16 channels, external antenna with magnetic base • Operating range temperature (°C) : 0..+50 • Operating ranges temperature (°C) : 0..+50 • Operating range humidity : max. 85% rH non-condensing • Power supply : 100..240 V ~ • Power consumption : 3,5 VA • Enclosure : ABS • Colour : light grey • Protection (IP) : IP20, according to EN 60529 • Mounting : prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715 • Delivery content : incl. external receiving/transmitting antenna (2,5 m) with magnetic base • Packaging length (mm) : 120 • Packaging width (mm) : 100 • Packaging height (mm) : 100 • Packaging : case packaging • Device length (mm) : 105 • Device width (mm) : 90 • Device height (mm) : 60 • Weight (g) : 200
