Motorized valve actuator UTM series

electricmanualquarter-turn

Product overview

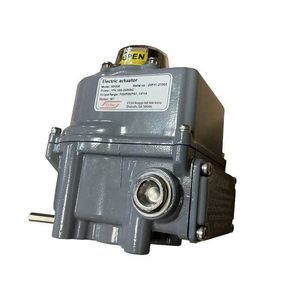

The UTM series multi-turn electric actuator is designed for industrial valve automation where high torque and reliable field performance are required. Available in single-phase 220V and three-phase 230/460V, the UTM family covers models UTM-01 to UTM-12 with torque outputs up to 405,000 ft-lbs and thrust ratings up to 1,200,000 lbs.

Features

• Corrosion-resistant powder-coated aluminum housing for harsh environments
• Manual operation via side-mount handwheel with automatic declutch lever
• High-torque, low-inertia motor with embedded thermostat; Class F insulation
• Detachable thrust base with copper-alloy drive bushing
• Four limit switches for open/closed position indication and two torque switches
• Anti-condensation thermistor-type space heater
• IP68 enclosure: submersible to 25 ft (7.6 m) for 72 hours

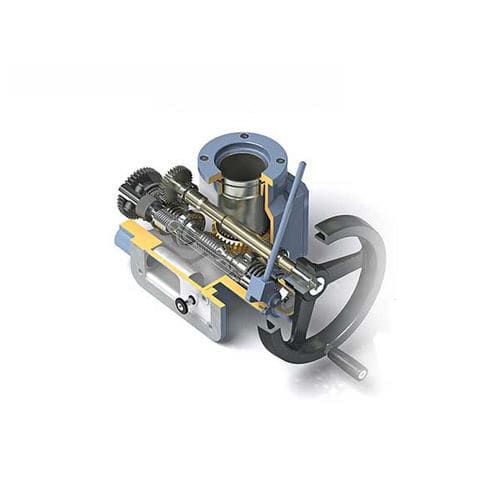

• Sealed worm gear case with EP lithium grease (MIL-23827B)
• Meets AWWA requirements for electric motors

Options

• Integral local or remote controls
• Modulating control packages (not available on single-phase models)
• Explosion-proof models: Class 1 / Group C & D / Div. 1
• Quarter-turn and bevel gear operator variants
• Communication protocols and custom control interfaces

Speed / torque overview
The UTM line offers multiple motor sizes and gear ratios to match valve stem diameters and speed/torque requirements. Representative models include UTM-01 through UTM-12 with motor sizes from 0.2 kW up to 22 kW (3-phase) and torque outputs specified across multiple RPM points. Single-phase units are available in selected sizes; consult UniTorq for availability and detailed speed/torque charts.

Documentation

• UTM Electric Actuator Brochure (PDF)
• UTM Basic On/Off (PDF)
• UTM-01 Basic (PDF)
• UTM IOM Manual (PDF)

Technical specifications

• Series: UTM series
• Torque: up to 405,000 ft-lbs
• Thrust: up to 1,200,000 lbs
• Power: single phase 220V; three phase 230/460V (60 Hz indicated)
• Ingress protection: IP68 (submersible to 25 ft / 72 hours)
• Housing: powder-coated aluminum, corrosion resistant
• Motor: high torque/low inertia; embedded thermostat; Class F insulation
• Gear lubricant: EP lithium grease (MIL-23827B) in sealed worm gear case
• Manual override: side-mount handwheel with automatic declutch
• Switches: 4 limit switches (open/closed), 2 torque switches
• Heater: anti-condensation thermistor-type
• Thrust base: detachable with copper-alloy drive bushing
• Compliance: meets AWWA electric motor requirements
• Available models: UTM-01, UTM-04, UTM-07, UTM-1, UTM-3, UTM-6, UTM-12 (see technical data for motor sizes, torque at RPMs, weights and ISO mounting flanges)
