Modular actuator controller AC

modular actuator controller
modular actuator controller
Add to favorites
Compare this product


Characteristics

Options
modular

Description

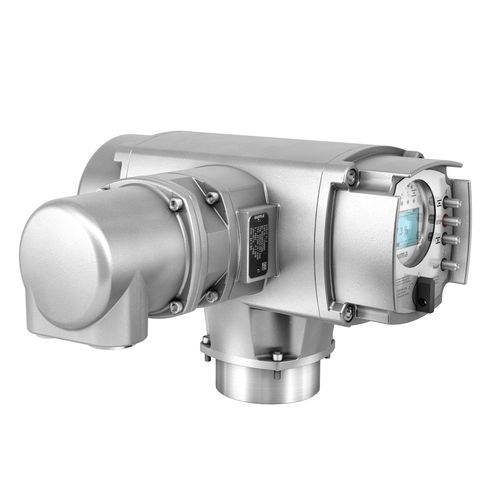

Explosion-proof versions AC Explosion-proof devices must be used in plants where potentially explosive atmospheres are likely to occur. These devices are designed so that they will not act as ignition source. Their constructive measures prevent the occurrence of ignition sparks or hot surfaces. Certification is performed in close collaboration with national and international certification bodies. With the ACExC a control with integral local controls is available for the multi-turn actuators SAEx/SAREx 07.2 - 16.2 and the part-turn actuators SQEx/SQREx 05.2 - 14.2. Design features Modular interface concept for remote control Local controls with lockable selector switch, push-buttons and indication lights LCD display for status indication and programming support Non-intrusive actuator setting and control programming (in connection with magnetic limit and torque transmitter MWG) Separate mounting on wall bracket possible Motor control via reversing contactors or thyristors Automatic phase correction External 24 VDC supply (option) Ambient conditions High enclosure protection High quality corrosion protection Wide ambient temperature ranges
