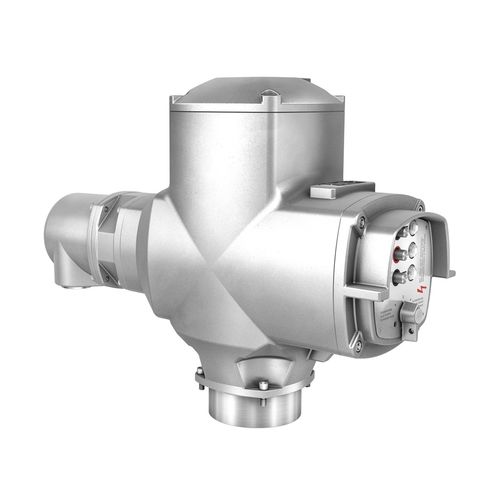

Modular actuator controller AMExC

Explosion-proof devices must be used in plants where potentially explosive atmospheres are likely to occur. These devices are designed so that they will not act as ignition source. Their constructive measures prevent the occurrence of ignition sparks or hot surfaces. Certification is performed in close collaboration with national and international certification bodies. With the AMExC a control with integral local controls is available for the multi-turn actuators SAEx/SAREx 07.2 - 16.2 and the part-turn actuators SQEx/SQREx 05.2 - 14.2. Design features Modular interface concept for remote control Local controls with lockable selector switch, push-buttons and indication lights Programmable control logic ("push-to-run" or "self-retaining") Programmable type of seating (torque or limit seating) Separate mounting on wall bracket possible Motor control via reversing contactors or thyristors (option) Automatic phase correction External 24 VDC supply (Option)
