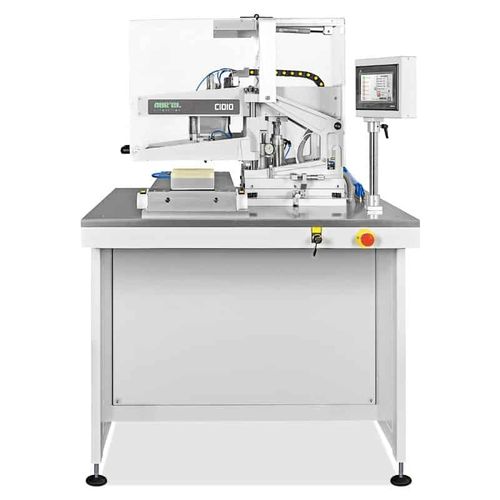

Automatic stencil printer C1010
monochromefor electronicsvacuum

automatic stencil printer
automatic stencil printer
automatic stencil printer
automatic stencil printer
automatic stencil printer
automatic stencil printer
automatic stencil printer
Add to favorites
Compare this product


Characteristics

Control
automatic
Number of colors
monochrome
Applications
for electronics
Other characteristics
vacuum, pneumatic

Description

FAST SCREEN-STENCIL PRINTER AUREL C1010 is a very fast screen/stencil printing machine with security cover that can print area up to 160 x 160 mm. C1010 grants the highest productivity for hybrid circuits standard sizes (up to 6″ x 6″). C1010 can be equipped with exchangeable fixtures according to the substrate drawing with vacuum or mechanical clamping system. APPLICATIONS AUREL C1010 is a free standing fast screen printer with cabinet and security cover that can print area up to 160 x 160 mm, assuring uniform deposition from corner to corner. Some applications for electronic and general industrial purposes are: • - Thick film and polymer pastes • - Multilayer Hybrids • - Solder paste for SMT • - Glues, adhesives, resins • - Through holes metallization • - Solder resist • - Sensor elements • - LTCC and Via Filling CONTROL SYSTEMS • - The machine is PLC controlled and allows a great deal of flexibility on all functions • - Touch screen panel with user friendly interface • - Print and flood, alternate print, contract and off-contact print double print • - Digital reading of speed, pressure and parallelism • - Machine diagnostic • - Machine hood & lifting and locking safety switches • - Work recipes storing • - Pneumatic system to lift up the arm • - Print gap measurement set HEAD • - One intelligent head on high precision slides • - High sensitive squeegee for fine-line printing, low pressure, constant angle, no vibration • - Controls of printing pressure, speed and printing delay • - DC motor driven head allows smooth movement and precise speed & stroke adjustment in both directions • - Configurable: one squeegee, one squeegee and flood blade
