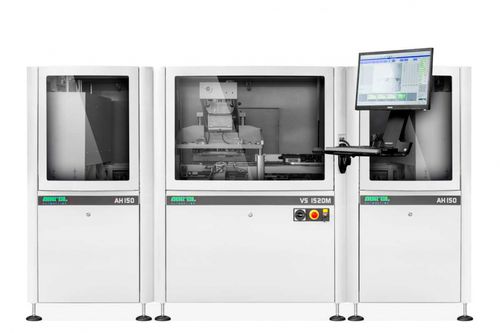

Automatic stencil printer VS1520M

monochromefor electronicsprogrammable

Aurel VS1520M is the full automatic screen printing version conceived with a modular approach that permits the customer to build up the line adding step-by-step additional modules according to the real production trend. The basic configuration consists of a from cassette-to-cassette line with a high accuracy in-line screen printer platform VS with automatic vision system to grant the highest repeatability for multi-layer circuits and throughput (up to 6 sec + print time) Some applications for electronic and general industrial purposes are: Ceramic substrates Roll-To-Roll line Foil-To-Foil line SOFCs Parts on carriers The machine is PC controlled and allows a great deal of flexibility on all functions Windows © Operating System Wide Touch screen monitor with user friendly interface Print and flood, alternating print and after print delay Programmable print parameters (printing stroke, pressure, print gap & down stop) Machine diagnostic Machine hood & lifting and locking safety switches Work recipes storing and data logging The new very intelligent head on high precision slides represents the latest state-of-the-art design with motorized and programmable axes for fine teaching and adjustment of parameters. High sensitive squeegee for fine-line printing, low pressure, constant angle, no vibrations. DC motor driven head allows smooth movement and precise speed & stroke adjustments in both directions. Configurable head, single squeegee, double squeegee, squeegee and flood blade. Motorized and programmable screen Z axis for screen height and slow print gap function - very important for fine line printing.
