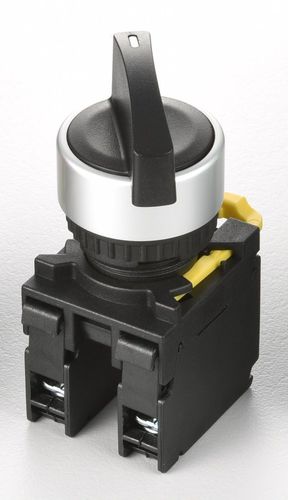

Selector knob switch A2MLS211single-poleIP65closed circuit
Add to favorites
Compare this product
Characteristics
- Type
- selector knob
- Number of poles
- single-pole
- Protection level
- IP65
- Other characteristics
- closed circuit, multi-position
- Primary current
Min.: 0.4 A
Max.: 600 A
- Voltage
Min.: 12 V
Max.: 600 V
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description
Thermal current Ith 10A 50/60Hz
Enclosed thermal current Ith 10A
Short-circuit current 1000A
Contact resistance: 50mΩ max (initial)
Mounting hole: 22mmφ
Position: 2/3 Position, 2/3 Position spring return, 3 Position spring return on one side
Type of contact: N/O, N/C, N/O + N/C
Lens color: Red, Green, Yellow, Blue, Black, White
Mechanical life:
Actuator: 600,000 operations
Contact block: 1 million operations
