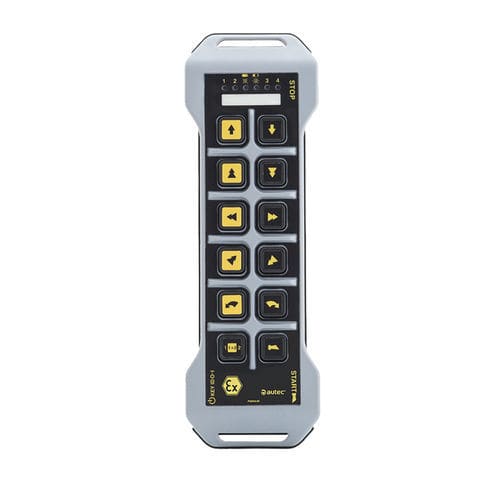

Radio control LK NEO 12 EX

with buttonsfor overhead cranesindustrial

Product overview
The LK NEO 12 EX pushbutton transmitting unit is designed for use in hazardous environments with explosion risk typical of petrochemical and heavy industry. Available in 12-button or 8-button configurations, it is certified ATEX (directive 2014/34/EU: zone 0/20 or zone 2/22) and IECEx (zone 0/20). The transmitter can be paired with any AIR Series receiving unit located outside the hazardous area, or with an ACRM15 receiver installed inside an explosion-proof enclosure.

Accessories

• Shoulder harness suitable for use in hazardous (explosion-risk) areas

Technical data sheet (summary)

• Power supply: 3.7 VDC (Li‑ion battery)
• Frequency band: 433.05–434.79 MHz (64 channels)
• Typical working range: up to 100 m (330 ft)
• Average continuous usage: > 8 h (at 20°C / 68°F)
• STOP function safety (EN ISO 13849-1): up to PL d
• Ingress protection: IP65
• Dimensions: 265 x 85 x 49 mm (10.43 x 3.35 x 1.92 in)
• Weight: 450 g (0.992 lb)

Technical specifications

• Model: LK NEO 12 EX (12-button explosion-proof transmitter)
• Alternative configuration: available with 8 pushbuttons
• Certifications: ATEX 2014/34/EU (zone 0/20 or zone 2/22), IECEx (zone 0/20)
• Compatible receivers: AIR Series (receiver outside hazardous area) or ACRM15 in explosion-proof enclosure
