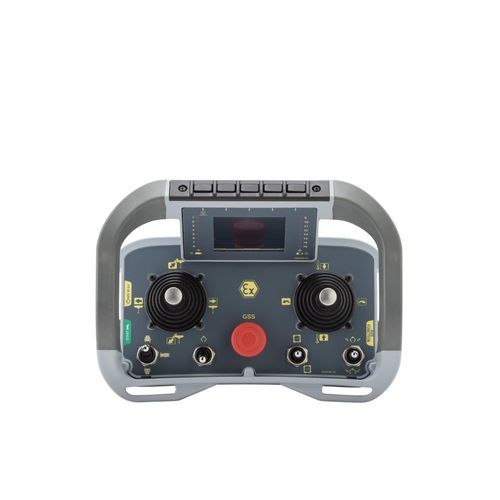

Radio control AJN Ex

with buttonsjoystickwith toggle switch

Overview
AJN Ex is the most compact model in the Ex series, engineered to provide safe and reliable control of machinery operating in potentially explosive atmospheres. It is designed for complex industrial applications and combines functional safety, mechanical durability and ergonomic layout in a single unit.

Intended use
AJN Ex is suitable for use in ATEX gas and dust zones classified as Zone 1 and Zone 21, as well as Zone 2 and Zone 22. It is also certified for mining applications category M1, where remote control must maintain consistent performance in harsh environmental conditions.

Available options

• Vision system: 2.8" TFT LCD display (320×240 pixels, 65,536 colors) with 16 LEDs and five interaction keys. Optional encoder available to simplify navigation. Suitable for indoor and outdoor use.
• Protection system: Marine protection treatment. Components and the transmitter are treated with an anti-salt solution to provide long-term resistance against corrosion and damage from salt and humidity.

Key applications

• Truck-mounted hydraulic cranes
• Concrete vibrators
• Stationary concrete machinery
• Tunnel boring and excavation machines
• Crushers and screening plants
• Hydraulic breaker arms
• Generic tracked vehicles
• Overhead cranes
• Forklifts
• Conveyor belts
• Machine tools
• Compacting presses
• Gantry cranes
• Pumping and flushing units
• Container handlers
• AGV (Automated Guided Vehicles)
• Agricultural shredders
• Forestry and agricultural vehicles
• Aerial cableways
• Forestry cranes
• Port cranes
• Boat handling trolleys

ATEX marking
Zone 1/21, mining M1: II 2GD, Ex ia IIC T4 Gb, Ex ia IIIC T135°C Db, I M1, Ex ia I Ma; temperature range: -20°C ≤ Tamb ≤ +60°C
Zone 2/22: II 3GD, Ex ic IIC T4 Gc, Ex ic IIIC T135°C Dc; temperature range: -20°C ≤ Tamb ≤ +60°C
