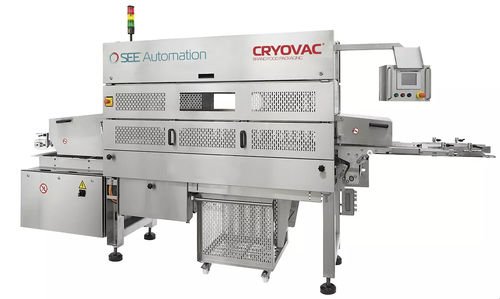

Compact loader AL series

for production linesfor industrial applicationselectric

Overview
CRYOVAC® brand Automatic Bag Loaders bring production efficiency to the process of preparing large, heavy food items for primary packaging. While the AL75 and AL101 are high-speed bagging systems for deli slicing logs and fresh meats respectively, the CL20 is a specialized machine that inserts 40 lb (≈18 kg) cheese blocks into gusseted pouches. Designed as components of a fully automated packaging line, CRYOVAC® automatic bag loaders reduce labor risks associated with repetitive motion and high-stress positions while moving heavy objects. These systems integrate with conveyors, vacuum systems, and turners, and are designed for quick servicing and easy product changeovers.

Product summary
High-speed, fully automated bagging machines for packaging slicing logs of smoked & processed meats, hams, and cheese. They eliminate repetitive, labor-intensive hand loading and improve worker safety, product positioning, and line consistency.

Features and Benefits

• Resource allocation improvement
• Labor injury risk reduction by eliminating repetitive or high-stress positions
• Fast, easy product and bag changeovers
• Easy-to-use operator interfaces
• Designed for integration with other equipment to automate the primary packaging process

Model highlights and intended product types

• AL75: High-speed model for slicing logs of deli meats and smaller product sizes.
• AL101: Designed for larger or primary cuts of fresh meat.
• CL20: Specialized for inserting 40 lb cheese blocks into gusseted pouches.

Specifications - CRYOVAC® Brand AL75
Package Size - Widths: 5” – 14” (130 – 350 mm); Length: 8” – 23” (200 – 600 mm)
Product Height - 2” – 6” (50 – 170 mm)
Product Weight Max - 15 lbs
Speed - up to 45 ppm
Electrical Voltage - 3-phase, 400/460 V, 50/60 Hz
Air Requirements - 0.6 MPa (6 bar), 25 CFM, ½” dedicated line
Product Type - slicing logs of deli meat, hams, cheese

Specifications - CRYOVAC® Brand AL101
Package Size - Widths: from 9” – 17.7” (229 – 449.5 mm); Length: up to 33.5” (850 mm)
Product Height - 6” – 6.5” (150 – 170 mm)
Product Weight Max - 44 lbs
Speed - up to 23 ppm
Electrical Voltage - 3-phase, 380/480 V, 50/60 Hz, 20 AMP
Air Requirements - 0.6 MPa (6 bar)
Product Type - large or primary cuts of fresh meat

Specifications - CRYOVAC® Brand CL20
Package Size - Width: 11” (277 mm); Length: 24” (620 mm); Gusset: 7” (187 mm)
Product Height - 7” – 8” (180 – 210 mm)
Product Weight Max - 40 lbs
Speed - 2 cycles per minute
Electrical Voltage - 3-phase, 380/480 V, 50/60 Hz, 20 AMP
Air Requirements - 0.6 MPa (6 bar)

caractéristiques / spécifications techniques

• Compliance: Systems comply with FDA requirements for food packaging (certificate available on request).
• Integration: Designed for easy integration with conveyors, vacuum systems, turners, label printers, and shrink tunnels for fully integrated packaging lines.
• Maintenance: Models qualify for CRYOVAC® Advanced Maintenance Program (preventive maintenance option).
• Changeover: Fast, easy product and bag changeovers; user-friendly operator interfaces.
• Performance: Filling speeds vary by model, package size, and product type (see per-model speeds and capacities above).
