Profile packaging system CL20

Overview
The CRYOVAC® Brand Cheese Block Packaging System is a modular, inline automation solution for handling and packaging 40 lb (≈18 kg) cheese blocks in gusseted pouches. Supplied as a three-piece equipment set, the system receives blocks, prepares gusseted bags, inserts product into pouches and orients bagged blocks for downstream processing, improving consistency and reducing manual handling risk.

Product Set Components

• CL20 Cheese Block Loader — receives 40 lb blocks from forming towers and inserts them into gusseted pouches via a stainless steel cassette
• RG20 Bag Re-Gusset Equipment — folds and prepares bags for vacuum sealing and downstream sealing stations
• UBT20 Universal Block Turner — rotates bagged blocks 90° or 180° in a compact footprint for space-efficient flow

Features and Benefits

• Automates handling of heavy 40 lb blocks to reduce repetitive manual tasks and workplace injury risk
• Improves bag positioning and sealing consistency to optimize yield
• Fast, tool-free product and bag changeovers for higher uptime
• User-friendly operator interfaces for simple control and diagnostics
• Modular plug-in options (pick-and-place, alignment chute, bag opener, gripper systems, spreader plates) to adapt to production needs

Cheese Block Handling and Bagging Machines - Summary
A compact, safety-focused packaging line for 40-pound cheese blocks designed for repeatable placement into gusseted pouches and efficient integration with vacuum sealers and downstream conveyors.

Specifications - General
Designed for food-contact use and complies with FDA requirements for food packaging. Constructed for sanitary operation with stainless steel contact surfaces and modular electrical/pneumatic interfaces.

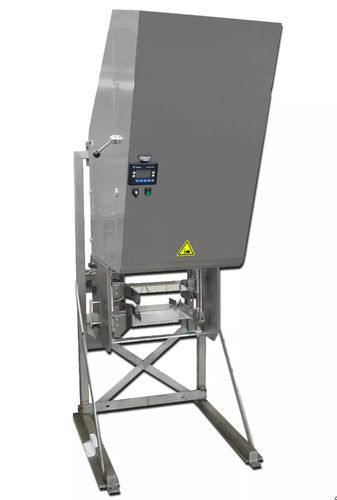

CRYOVAC® Brand CL20 Automated Cheese Block Bag Loader
Package Size: Widths: 11” (277 mm) • Length: 24” (620 mm) • Side Gussets: 7 3/8” (187 mm)
Product Weight Max: 40 lbs (≈18 kg)
Speed: up to 2 cycles per minute
Electrical Voltage: 24 VDC, 2 AMP
Air Requirements: 90 PSIG, 10 mm line

CRYOVAC® Brand RG20 Bag Re-Gusset Machine
Package Size: Widths: 11” (277 mm) • Length: 24” (620 mm) • Side Gussets: 7 3/8” (187 mm)
Product Weight Max: 40 lbs (≈18 kg)
Speed: up to 6.5 cycles per minute (~400 blocks/hour)
Electrical Voltage: 3-phase, 240 VAC / 480 VAC, 60 Hz
Air Requirements: 90 PSIG, 10 mm line

CRYOVAC® Brand UBT20 Universal Block Turner
Package Size: Widths: 11” (277 mm) • Length: 24” (620 mm) • Side Gussets: 7 3/8” (187 mm)
Product Weight Max: 40 lbs (≈18 kg)
Rotation: 90° or 180° for compact product orientation

Technical specifications

• Designed specifically for 40 lb (≈18 kg) cheese block handling and bagging
• Modular three-component system: CL20, RG20, UBT20
• Supports gusseted pouches loaded via stainless steel cassette
• Multiple plug-in modules available for customized automation workflows
• Electrical and pneumatic requirements vary by module (see per-model specs)
• Operating speeds: CL20 up to 2 cycles/min; RG20 up to 6.5 cycles/min (~400 blocks/hour)
