Linear actuator Mech Value series
electricstepperball screw

linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Technology
stepper, ball screw
Applications
industrial
Other characteristics
with parallel motor, high-speed, high-performance, wide, small-size, flange
Stroke

Min.: 50 mm
(1.969 in)

Max.: 500 mm
(19.685 in)

Force

Min.: 50 N

Max.: 1,700 N

Speed

Min.: 100 mm/s

Max.: 500 mm/s

Repeatability

0.02 mm
(0 in)

Description

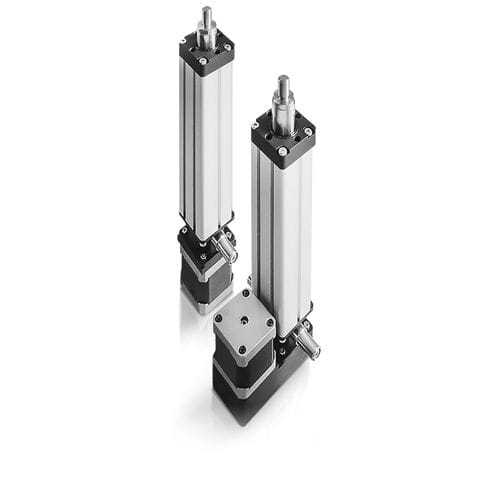

Small electric cylinders for high performance in speed and strength, based on best on the market small ball screw system embedded on proprietary profiles having anti-rotations feature. Available in a normal or parallel version to optimize the spaces. Small-sized electric cylinders, for high performance in terms of speed and resistance, based on a sphere recirculation screw technology, available in a normal or parallel version to optimize spaces. They are equipped with innovative high-speed Stepper motors with encoder or in the Sensorless version, a new technology making use of motor control parameters to detect correct position without installing an encoder, thus reducing costs and sizes. The cylinder profles are also designed to include the AwareVu technology for detecting vibrations in the installation area. (Ind. 4.0) Available sizes 16 - 25 - 32, with direct or delayed Stepper motor for easier adjustability.
