Forklift truck ramp

for docksfor trucksfor warehouse

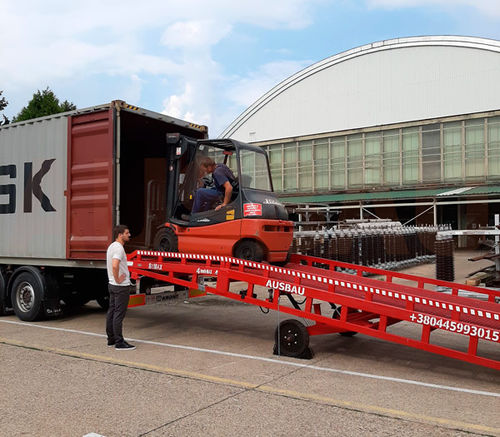

Loading ramp AUSBAU. We produce models with load capacities of 6, 8, 10, 12 and more tonnes. The AUSBAU loading ramp can be made in non-standard sizes and for non-standard tasks. Reasonable price and excellent quality are the main advantages of our company and our products. Details on our website av-exim.com. id: 5DdZxN. Specifications: - Loading capacity, kg - 6000 / 8000 / 10000 / 12000; - Total length of the ramp, m - 9.0 / 9.5 / 10.5 / 11.2 / 12.0 / 13.0; - Length of sloping part, m - 7,0 / 7,5 / 8,2 / 8,9 - Length of the horizontal part, m - 0,7 / 2,2 / 2,4 / 2,5 / 2,8 - Length of folding ramps, m - 1.0 - Length of ramp, m - 0,3; - Total width of ramp, m - 1.73 / 2.13 - Driveway width, m - 1.6 / 2.0 - Max. working height, m - 1.65; - Minimum working height, m - 0,9; - Number of wheels -2; - Wheels - polyurethane / solid rubber / pneumatic; - Numbers of folding tailgates, pcs. - 2 - Covering: Latticeice decking; - Ramp accessories: ramp coupling, chains with hooks 2 pcs., chocks 2 pcs., hydraulic pump, pump hand crank, two hydraulic cylinders + high-pressure hoses. Warranty period: 18 months. Worldwide service. Availability in stock. CE conformity. Working principle of the loading ramp: The loader drives the ramp up to the truck by raising the edge of the trestle (by inserting the fork into the rigid swivel coupling). A hydraulic pump adjusts the height of the ramp to the desired level (900 mm to 1650 mm). The ramp comes with locking brakes and chains. The brakes are needed to prevent the ramp from moving. The chains are for extra securing of the ramp to the truck. The forklift then slides the mobile ramp inside the truck or container.
