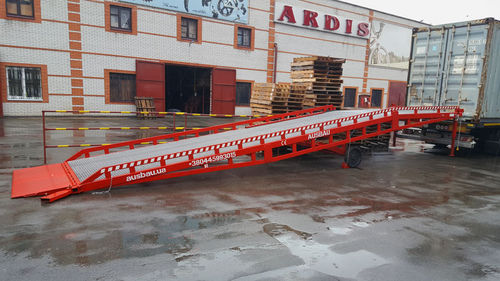

Dock loading ramp NRW series

for forklift trucksfor warehousefor utility vehicles

Loading ramp AUSBAU from the manufacturer. Large sloping area, anti-slip surface, height adjustment (from 900 to 1650 mm). Standard models with load capacity of 6, 8, 10 and 12 tons. We produce mobile loading platforms of any size to order. More information about AUSBAU loading ramp on our website av-exim.com. id: 5DdZxN Specifications: - Load capacity of the ramp, kg - 6000 / 8000 / 10000 / 12000; - Total length of the ramp, m - 9.0 / 9.5 / 10.5 / 11.2 / 12.0 / 13.0; - Length of the inclined part, m - 7,0 / 7,5 / 8,2 / 8,9; - Length of the horizontal part, m - 0,7 / 2,2 / 2,4 / 2,5 / 2,8; - Length of hinged ramps, m - 1.0; - Length of the ramp, m - 0,3; - Total width of ramp, m - 1,73 / 2,13 - Width of the driveway, m - 1,6 / 2,0; - Max. working height, m - 1,65; - Min. working height, m - 0,9; - Number of wheels -2; - Wheels - polyurethane / solid / pneumatic; - No. of folding driveways, pcs. - 2 - Covering - grid decking; - Ramp accessories: coupling device for moving the ramp, chains with hooks 2 pcs, wheel chocks 2 pcs, hydraulic pump, pump handle, two hydraulic cylinders + high-pressure hoses. Warranty period: 18 months. Worldwide service. Production time: 15-45 calendar days. Stock availability. CE marking. How mobile loading ramps work: Forklift lift rear side of the movable dock ramp (there is special place for forklift's palm) and move ramp to truck or railcar. Using manual hydraulic, pushing lever of the pump, worker set ramp on required height (minimum 900 mm, maximum 1650 mm) – height of truck body from the ground level.
