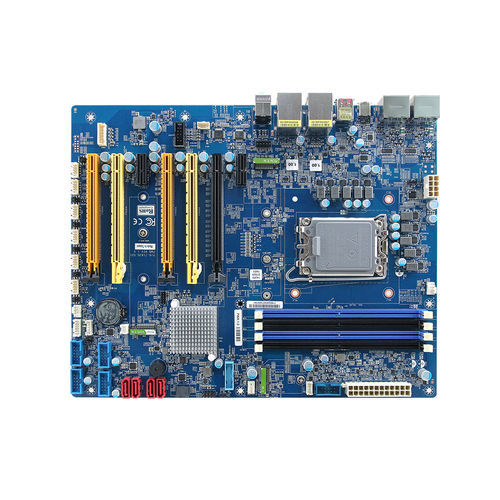

ATX motherboard BC680R

Intel® Core i3Intel® Core i5Intel® Core i7

System Information I/O Chipset nuvoton NCT6126D Watchdog Timer H/W Reset, 5~255 Seconds/5~255 Minutes BIOS AMI uEFI BIOS 256Mbit SPI Flash ROM H/W Status Monitor CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control Display Multiple Display Four Diaplay Audio Audio Codec Realtek ALC888S HD Audio Decoding Controller Audio Interface Mic-in, Line-out Audio Amplifier 2 x 6W 8Ω Amplifier Power Requirement Power Mode AT/ATX (Default Setting: ATX) Certification Certification Information CE, FCC Class, RoHS Compliant I/O DIO 1 x 8-bit GPIO Mechanical & Environmental Operating Temp. 0~60°C (32~140°F) Storage Temp. -20 ~ 80°C (-4~176°F) Operating Humidity 5% to 90% non-condensing Weight 1.85lbs (0.85kg) Power Requirement +12V/+5V/5VSB/+3.3V/-12V Power Mode AT/ATX (Default Setting: ATX) Dimension (L x W) 12" x 9.6" (304.8mm x 243.84mm)
