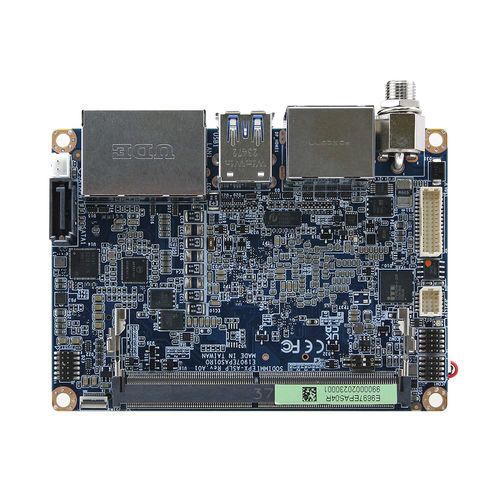

Pico-ITX motherboard EPX-TWLP series

Intel® Processor N-seriesIntel®DDR5 SO-DIMM

Bottom Layer Soldered Processor DC in +12V System Information I/O Chipset EC IC: IT5782 or Equivalent Fintek_F81435N or Equivalent for COM port Watchdog Timer H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step BIOS AMI BIOS, 256Mbit SPI Flash ROM H/W Status Monitor CPU temperature monitoring Voltages monitoring CPU fan speed control TPM Support fTPM Display Graphic Chipset Intel® Graphics Multiple Display Triple Display Certification Certification Information CE, FCC, RoHS Compliant I/O DIO 1 x 4-bit GPIO Mechanical & Environmental Operating Temp. 0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow Storage Temp. -40°C ~ 75°C (-40°F ~ 167°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Weight 0.66lbs (0.3Kgs) Power Requirement DC in +12V Power Mode AT/ATX (Default Setting: ATX) Dimension (L x W) 3.94" x 2.83" (100mm x 72mm)
