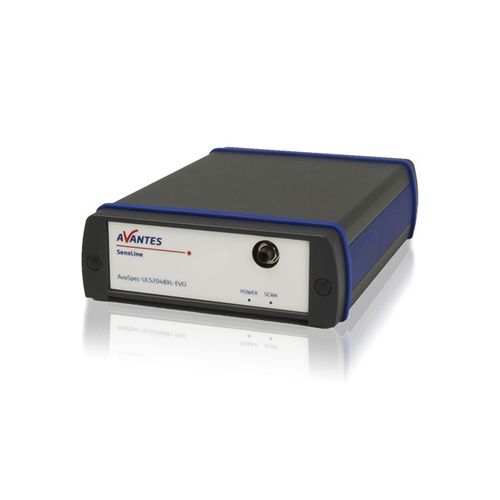

Optical spectrometer AvaSpec-ULS2048x64-EVO
fiber opticCzerny-TurnerNIR

optical spectrometer
optical spectrometer
optical spectrometer
optical spectrometer
Add to favorites
Compare this product


optical, fiber optic, Czerny-Turner, NIR, CCD, UV
process, optical, cost-effective, electronics
Detector type
Other characteristics
USB, multi-channel

Min.: 200 nm

Max.: 1,160 nm


Alongside the cooled AvaSpec-ULS2048x64TEC-EVO with low-noise detector, Avantes also offers the more cost-effective, uncooled AvaSpec-ULS2048x64-EVO. With its standard 2048×64 back-thinned detector, this spectrometer is perfect for less demanding applications in the UV and NIR ranges. For applications that require integration times lower than 2 seconds, the cooling option is often not needed. For example, this uncooled AvaSpec-ULS2048x64-EVO has an established track record in various DOAS applications all over the world because of its high UV response and 0.9mm detector height that enables detecting the wavelengths of interest. Options include an order-sorting filter to reduce second-order effects and purge ports for deep-UV measurements. The AvaSpec-ULS2048x64-EVO comes with a wide range of slit sizes and gratings and can be configured with SMA or FC/PC fibre-optic entrance connectors. The AvaSpec-ULS2048x64-EVO uses the AS-7010 electronics board offering USB3 (10 times faster than USB2), Gigabit Ethernet, and better signal processing. Connection to your PC is handled via USB3 connection or Ethernet, delivering a scan every 2 milliseconds. The instrument comes complete with AvaSoft-Basic software, USB cable, and an extensive manual. Optical bench - Ultra-low stray light (ULS) symmetrical Czerny-Turner, 75 mm focal length Resolution - 0.09-20 nm, depending on figuration Stray light - <1%, depending on grating Sensitivity in counts/µW per ms integration time - 650,000 Quantum efficiency @ peak - 60% (200-300 nm) Detector - Back-thinned CCD image sensor 2048×64 pixels (height: 0.89 nm) Signal/noise - 450:1
