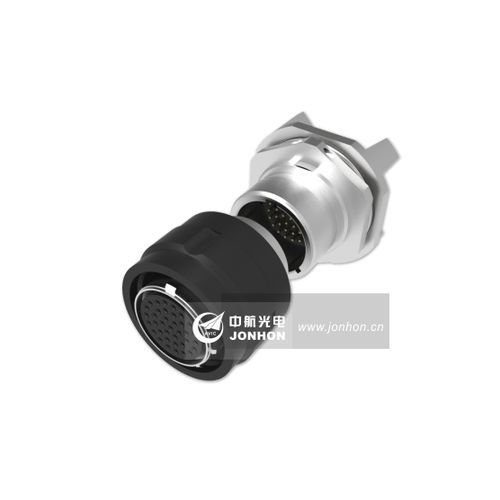

Electrical power supply connector CT48 seriesscrewpush-pullpower
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- push-pull, screw
- Electrical characteristics
- power, insulation
- Material
- PBT, wire, aluminium
- Product applications
- plug, housing, terminal, gauge
- Domain
- outdoor
- Protection class
- IP67, IP66
- Other characteristics
- waterproof
- Primary current
30 A
- Voltage
1,500 V
- Operating temperature
Min.: -60 °C
(-76 °F)Max.: 115 °C
(239 °F)
Description
Outdoor power series are used in RRU, AAU power interface, outdoor BBU interface, outdoor power module interface, with maintenance window type and outdoor waterproof type.
Thread quick coupling, easy operating with clear position mark;
Excellent environmental resistance, 576h salt spray, IP67 degree after mating
Screw fix type for plug terminal, soldering type for receptacle terminal, installation on site;
Wire gauge from 4mm2 to 10mm2;
Comply with RoHS requirements, and passed TUV, CUL certification.
Insulation Resistance - ≥5000MΩ (normal temp)
Contact Resistance - ≤1.25 mΩ
Housing Material - aluminium alloy
Contact Plating - 0.3μm golden plating
Surge Shock - 10 cycles, 15KA
Endurance - 500 cycles
Salt Spray - 576h
IP degree - IP67
Insulation Material - PBT fire-proof degree UL94-V0
