Electrical power supply connector EVS5 Series
wire-to-wirewire-to-boardflat

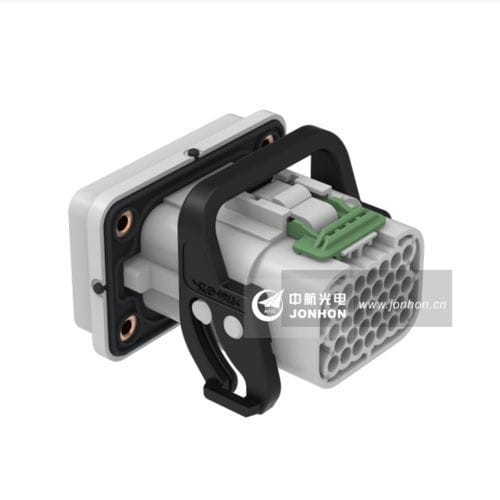

Electrical power supply connector - EVS5 Series - AVIC JONHON OPTRONIC TECHNOLOGY CO., LTD. - wire-to-wire / wire-to-board / flat
Electrical power supply connector - EVS5 Series - AVIC JONHON OPTRONIC TECHNOLOGY CO., LTD. - wire-to-wire / wire-to-board / flat
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Format
wire-to-wire, wire-to-board
Shape
flat
Connection type
push-pull
Material
plastic
Product applications
transmission, housing, cable
Domain
fast, monitoring
Protection class
IP68
Other characteristics
waterproof
Primary current

9 A

Voltage

24 V

Operating temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

Used for the signal transmission and monitoring of EV. Wire-to-wire and wire-to-board signal waterproof connectors with plastic housing, of which 8-core, 14-core, 20-core, 23-core are direct push-pull fast connection, 8-core and 18-core receptacle are front mounting, 14-core, 20-core and 32-core receptacle are back mounting, and 14-core and 23-core are wire-to-board connectors. Flat crimping contact, adapted cable specifications are 0.35 mm2, 0.5 mm2 and 0.75 mm2, adapted cable OD are Φ 1.2 ~ Φ 1.9. The contact, waterproof blocking and seal blocking need to be ordered separately. IP degree - IP68
