Ball bearing guide unit Type 32R

stainless steelprecisionanti-corrosion

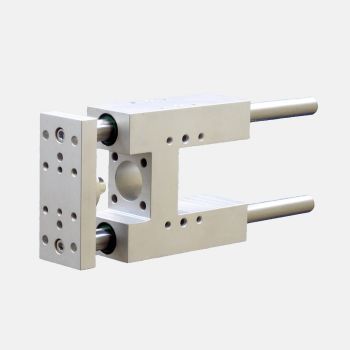

H-guide unit for pneumatic cylinders ISO Ø25 to Ø125 Sturdy guide on ball bushings or bronze bearings Protected by wipers seals Options : Anti-corroding version Rod clamping Sturdy H-guide This Strengthened Series has bigger guide rods than the Classic series and a thicker front plate for longer centering of the rods to increase torsion strength: the plate / rods connection is generally the weak point of the Classic series when off-centered forces or loads are applied. Guide unit for Ø125 cylinder Adapted to the ISO6432 (Ø25) and ISO15552 (Ø32 to 125) cylinders, we can also adapt other types of pneumatic cylinders or electric actuators. Sturdy guide on plain bearing or ball bearing ? The plain bearing version is recommended for static radial loads, short strokes, dusty environments, it’s also the more economical version. The ball bushings version is recommended for precision (no radial play), high loads at horizontal, long strokes and off-centered loads. For critical applications, we propose Heavy series. Anti-corroding version for sturdy guide unit For environments requiring an anti-corrosion version, the steel parts can be supplied in stainless steel (rods, coupling, screws), the body and front plate are remaining in anodized aluminum (suffix /AC after the reference). For all stainless steel guides, refer to the 34*X series. Scrapers in polyurethane can be proposed for dusty or dirty environments.
