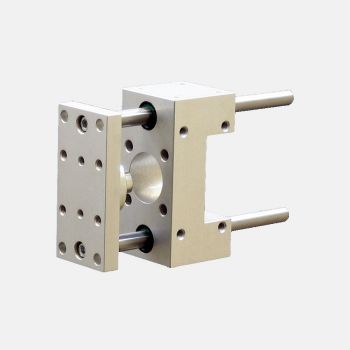

Plain bearings guide unit Type 34

ISO15552anti-corrosionISO6432

U guide unit for pneumatic cylinders ISO Ø12 to Ø80 Anti-rotation guide on bronze bearings Protected by wipers seals Option : Anti-corroding version Anti-rotation for ISO pneumatic cylinder This Light Series provides anti-rotation of the cylinder rod. With limited dimensions, it permits to use an ISO cylinder for short-stroke translations, while protecting the rod of the cylinder with its floating rod coupling. For environments requiring an anti-corrosion version, the steel parts can be supplied in stainless steel (rods, coupling, screws), the body and the front plate are remaining in anodized aluminum (suffix /AC after the reference). For all stainless steel guides, refer to the 34*X series.
