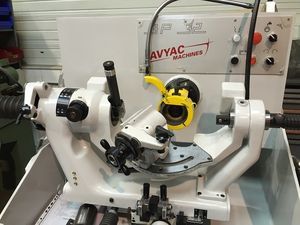

Cutting tool sharpening machine NC 540

drill bitelectrodeengraving tool

The Avyac NC540 5-Axis CNC Grinding Center: Precision and High Productivity
Designed to meet the demands of production workshops and professional sharpeners, the Avyac NC540 is a 5-axis solution dedicated to grinding large drill bits and cutting tools (HSS and Carbide). Its highly stable structure guarantees excellent geometric repeatability, essential for extending the life of your tools.

Technical Capabilities & Tool Versatility
The NC540 stands out with its unique ability to handle tools up to 1000 mm in length as standard (and up to 2000 mm as an option with a secure guard extension), across a diameter range from Ø3 to 40 mm.
The machining center natively handles a wide variety of tools and complex geometries:
• Twist drills (right/left helix): Conical or faceted relief, web thinning, double point angle.
• Gundrills: 1 or 2 flutes, with chamfer, step, radius, chips breaker.
• Specialty tools: Step drills, wood drills (Brad point), reamers (3 or 4 flutes), taps, engraving cutters, punches, and centering tools.

Specifications and Industrial Components
Reliability is based on the integration of components from leading industry brands:
• CNC Control: Available with an intuitive B&R interface (Power Panel PPC2100) or as a high-performance option with the SIEMENS SINUMERIK ONE / 840D SL touchscreen control.
• Motorization: Synchronous motors equipped with absolute encoders (no homing required at startup).
• Electrospindle: ISO 30 or HSK 63 taper – 4.5 kW power – Speed ​​from 3,000 to 12,000 rpm.
• Indexing & Probing: Marposs 3D sensor for micrometric tool detection and positioning.
• Tool Clamping: Automatic pneumatic (Schaublin W25 collets or 6-jaw chucks from Ø3 to 40 mm).
• Grinding Wheel Train: Diameter Ø100 to Ø150 mm (CBN or Diamond). Up to 3 grinding wheels can be mounted simultaneously.

Productivity and Automation
To meet the profitability challenges of industrial workflows, the Avyac NC540 incorporates advanced autonomous technologies:
• Automatic Loading: A high-performance gravity-fed circular platform allows loading up to 90 tools (max. Ø25 mm / max. length 450-500 mm).
• Differentiated Programming: The in-house developed Plug & Play software interface allows for the assignment of a completely different sharpening program and geometry to each tool on the loader, in a fully autonomous manner.
• Fluid Management & Safety: Integrated oil or emulsion filtration system (5µm to 20µm cartridge), centrifugal force mist scrubber, and mandatory automatic fire extinguisher option for neat oil operation.

Manufacturer Quality & Maintenance
• Origin: Machine designed and manufactured in France, assembled according to rigorous robustness standards (2000 kg frame guaranteeing optimal vibration absorption).
• Remote Maintenance: Integrated industrial modem (ETIC TELECOM M2Me system) for immediate remote diagnostics by technical teams, drastically reducing machine downtime.
