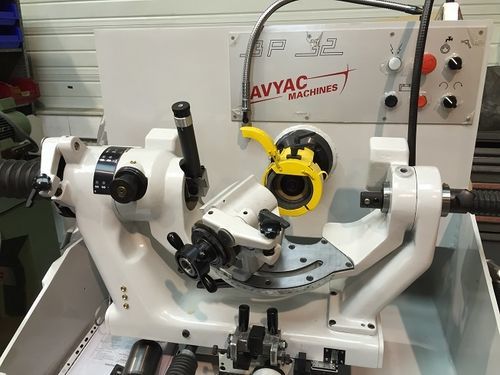

Drill bit sharpening machine 3P32

manualCBN

Overview
The 3P32 is a drill sharpening machine for drills from Ø3 to 32 mm, available refurbished, retrofitted or new. It is designed for workshop reconditioning of drill bits and similar cutting tools.

Key points

• DIVERSITY: Sharpens HSS and carbide drills, structural-frame drills, deep-hole Gundrills, 2-flute and 3-flute end mills, reamers and step drills.
• PROFITABILITY: Example: at 50 HSS drills re-sharpened per day, the 3P32 can be cost-effective within a year (based on average resharpening cost).
• SIMPLICITY: Grinding positions (clearance, thinning, cutting angles) are set by mechanical stops or notches, eliminating vernier reading and reducing operator error.
• SPEED: Short sharpening cycles—approximately 2 minutes for a 20 mm diameter HSS drill.
• QUALITY: High concentricity from the head and collet assembly (biconical collets, 0.25 mm increments) ensures symmetric cutting edges; integrated coolant supports consistent grinding quality.
• ECONOMY: Low maintenance costs due to oversized wear parts; a single grinding wheel can perform relief and thinning operations, reducing inventory of wheels.
• SAFETY: Technology proven in hundreds of installations worldwide.

Application / Grinding types
Cruciform, 3-rake, sheet-metal, chamfered cutting edge, 3-lip, Gundrills.

Notes
Available refurbished, retrofitted or new. Integrated coolant system. Single grinding wheel for relief and thinning. High-concentricity collet system.

Technical specifications

• Dimensions (L×W×H): 1 450×1 180×1 050 mm
• Weight: 700 kg
• Sharpened tool diameters: Ø 3 to 32 mm
• Spindle motor: 1.1 kW / max 4 700 rpm
• Grinding wheels: Ø 100 mm – vitrified, CBN or diamond
• Cooling system: Flow 30 l/min, emulsion
• Grinding types: cruciform, 3-rake, sheet-metal, chamfered edge, 3-lip, Gundrills
