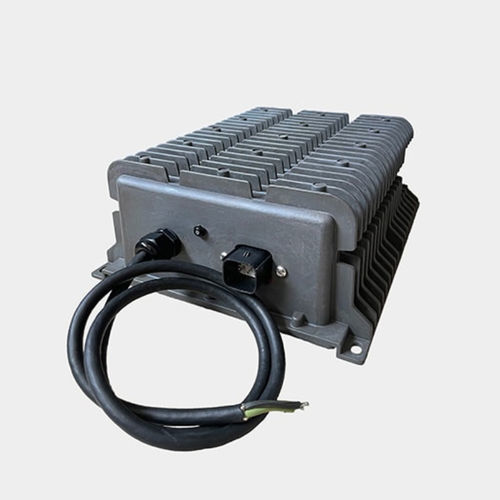

Electric vehicle battery charger AX090560

portablelead-acid

The 12VDC or 24VDC Battery Charger charges a 12VDC lead-acid battery as well as other battery chemistries. It is designed for mounting in a vehicle or in a stationary engine and managed heat dissipation so no fan cooling is required. It accepts 120VAC/220VAC line power. The charger monitors a remote battery temperature sensor for safe operation and prevention of battery overheating. It transmits charger condition, line connection status, battery voltage, and charge current over CAN bus. Electronic Assistant configures the charger to suit the application. Another model based on the charger design acts as a power supply. Specifications CAN Baud Rate 250 kbit/s Power Supply Mode 5-24 VDC output, up to 15 A User configurable Battery Charger Mode Voltage: 10-30 VDC Depending on the Charging Mode and User Configuration Current: 0.5-15 ADC Depending on the Charging Mode and User Configuration Control Logic Standard embedded software is provided User programmable functionality using the Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K Enclosure ACD12 Die Cast Aluminum Enclosure and Lid, Hard Anodized to MIL-A-8625 Molded EPDM Gasket 11.83 x 8.74 x 3.88 inches L x W x H excluding power cable assembly Connection(s) 1 4-pin Molex 194280006 1 6-pin Molex 1943506011 1 12-pin Molex 194280001 Operating Temperature -40 to 60°C (-40 to 140°F) for inputs 90-170 VAC -40 to 70°C (-40 to 158°F) for inputs >170 VAC Applications Off-highway Vehicles Lift Equipment Electric Vehicles Fleet and Utility Vehicles Emergency Vehicles Power Gensets Oil and Gas Equipment Electric Utility Substation Switchgear
