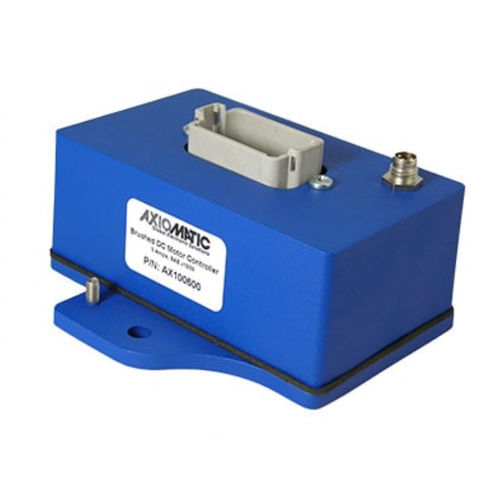

DC motor controller AX100600

brusheddigital inputcompact

The AX100600 provides smooth and precise speed control with CAN communications for bidirectional, brushed and other DC motors. This controller is compact, rugged with an IP67 rating and is designed for highly efficient and reliable power control. Specifications Input(s) User selectable, Choose one input from the following: 0-5 V 0-10 V 4-20 mA 0-20 mA PWM signal (100 Hz-10 kHz, 0-100%) A digital input from a switch or other source Output(s) H-bridge 5 A @ 24 VDC continuous at room temperature 7.5 A @ 24 VDC for 5 minutes at room temperature Control Logic Standard embedded software is provided User programmable functionality using the Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K Enclosure Aluminum housing, integral connector Encapsulated Connection(s) 1 3-pin M8 P/N: NAN-T-3MR-M8 1 12-pin connector equivalent to the TE Deutsch P/N: DT15-12PA Operating Temperature -40 to 85 ºC -40 to 185 ºF Applications Position or closed loop speed control for heavy equipment (Construction, Forestry, etc.)
