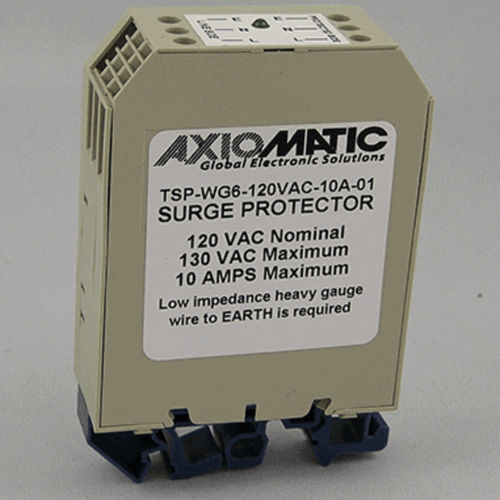

LED lighting surge protector TSP-WG6-120VAC-10A-01

modular

The TSP-WG6-120VAC-10A-01 is a three-stage transient protection module which provides overvoltage and surge current protection for single phase supply lines. The first stage provides transient rise time reduction. The second stage provides the primary transient voltage clamping and a LED circuit to indicate that the device is still fully functional. This second stage will be removed from the circuit well before the useful life of the device has expired. This will provide ample time for the device to be replaced ensuring continued protection of the connected equipment. The third stage is the most rugged and provides the bulk of the transient protection. Operating Voltage 120 VAC Enclosure WEG, 6 terminal modular housing with 12-22 AWG terminals Operating Temperature -40 to 85 ºC -40 to 185 ºF Applications Transient surge protectors provide common and differential mode protection for the following: Toll booths Drawbridges Street light controllers Railroad crossing gates/signals
