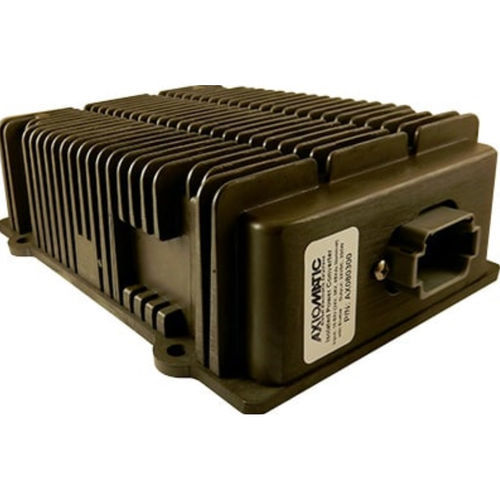

Power DC-DC converter AX080300

industrialfor EMI/EMC testingregulated

This DC/DC Converter has a typical efficiency of 93% and provides clean 24VDC power suitable for instrumentation, control networks, and process equipment. Power from a battery or other source in the range of 15-60VDC is converted to a 24VDC output regulated at ± 3%. For operation under the most harsh and demanding conditions, this IP67 rated unit is fully sealed and enclosed to protect against moisture, shock, and vibration. The unit is designed with extremely rugged surge and transient suppression, in addition to sustained over/under voltage protection, short circuit and overcurrent protection, and thermal protection for overtemperature. Specifications No. of Input(s) 1 Input(s) 24/36/48 VDC Nominal (15-60 VDC) No. of Output(s) 1 Output(s) 24 VDC +/- 3% (350 W) Output Current 15 A Continuous Isolation 700 VDC minimum, All To Chasis 700 VDC minimum, Primary To Secondary Enclosure Cast Aluminum housing, integral gasket and connector Connection(s) 1 8-pin connector equivalent to the TE Deutsch P/N: DT13-08PA Operating Temperature -40 to 85 ºC -40 to 185 ºF Compliance EMI/EMC Compliant EN50155 Compliant SAE J1455 and SAE J1113 Compliant Applications Industrial Machines for warehouses & factories Lift equipment Off-highway Power conversion from wide-ranging input to stable 24/36/48 VDC
