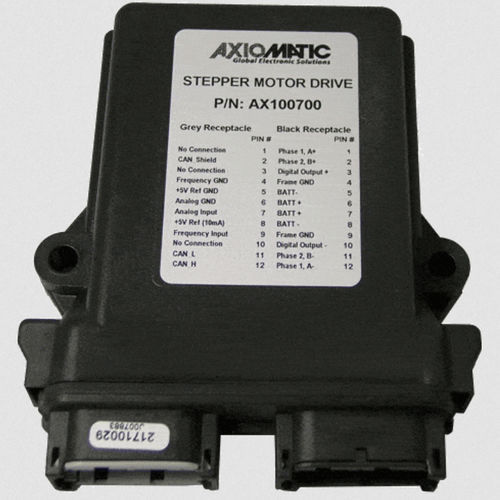

The Stepper Motor Controller provides simple and accurate control of the levels, waveforms, timing and phase-shifts of the current for a two phase stepper motor via SAE J1939 command messages. Analog and Digital command inputs are provided for a run-time parameter, feedback in a PID control loop or as an E-stop command. 1 pulse or PWM input for inductive or active sensor is available. Motor direction is selectable. An additional output is provided, a sinking digital output (up to 5A) for a relay, brake or other load.
Specifications
Input(s)
1 Analog/Digital input, user configurable as:
Current
Voltage
Digital input (active high or active low)
1 Pulse or PWM input, user configurable as:
100 Hz-10 kHz
Digital input (active high or active low)
Digital Outputs
1 Sinking (Switched to GND) output for up to a 5 A load (relay, brake or other load)
Output To Motor
Allegro DMOS Microstepping Driver, A3979
Maximum 2A per phase for a Stepper Motor.
Operating Voltage
12/24 VDC Nominal (9-32 VDC)
Control Logic
Open or closed loop motor drive control logic (user selectable)
Standard embedded software is provided
User programmable functionality using Electronic Assistant (EA),
P/N: AX070502 or P/N: AX070506K
Enclosure
High Temperature Nylon PCB Enclosure, TE Deutsch P/N: EEC-325X4B
Connection(s)
1 24-pin receptacle equivalent to the TE Deutsch P/N: DTM13-12PA-12PB-R008
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Automation such as:
Construction Equipment
Mobile Equipment
Material Transport Vehicles
On-road Vehicles (Bus)
