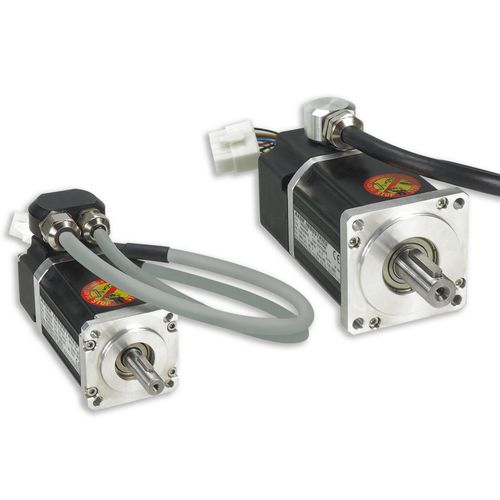

brushless servomotor / DC / 48V / 24V
Mack Basic Motor (MKBM)

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
brushless servomotor / DC / 48V / 24V brushless servomotor / DC / 48V / 24V - Mack Basic Motor (MKBM)
{{requestButtons}}

Characteristics

  • AC/DC:

    DC

  • Type:

    brushless

  • Voltage :

    48V, 24V

  • Other characteristics:

    8-pole, with built-in encoder, compact, IP54, robust, medium-inertia, low-noise

  • Torque:

    0.16 Nm, 0.32 Nm, 0.65 Nm, 1.3 Nm (0.118 ft.lb)

  • Power:

    50 W, 100 W, 200 W, 400 W (0.068 hp)

  • Rotational speed:

    1,500 rpm, 3,000 rpm (9,424.78 rad.min-1)

Description

A very robust, high performance, low noise motor for DC voltage supplies. Engineered & designed to meet axis control applications up to 1.3Nm. Compact dimensions and long-term reliability.
8 Pole, no cogging
B.E.M.F. sine wave
Medium rotor inertia
Very low torque fluctuation at minimum speed
Single-turn or multi-turn absolute Mack® serial encoder
Holding brake
Protection rating IP54 & IP65
30cm stub cable for easy connection
Special flanges and shafts
