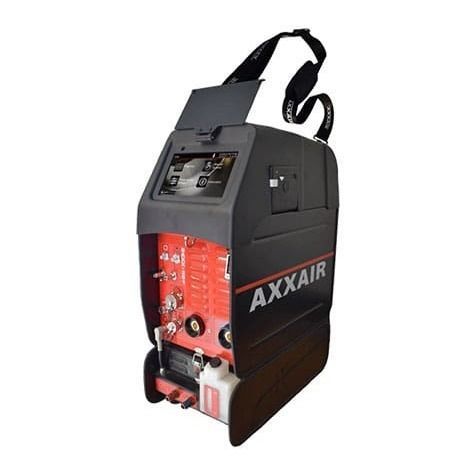

TIG welding power supply SAXX-201

orbitalelectrodesingle-phase

Product overview
The SAXX-201 is an orbital TIG welding power source delivering up to 200 A output in a compact, portable chassis. It features an intuitive interface with automatic parameter calculation, guided programming and three user access levels (operator, welder, administrator). A 7-inch colour touchscreen and clear menu structure simplify setup and operation on workshop and field sites.

Key advantages

• Automatic parameter calculation and guided programming for faster, repeatable program creation
• 7-inch colour touchscreen with multilingual interface for straightforward navigation
• Three user access levels to control permissions and protect process settings
• Compact, portable design with carrying handle, strap and screen protection for workshop and onsite use
• Integrated printer for immediate printing of welding programs and actual parameters to support traceability
• USB data acquisition for program and profile storage, enabling consistent, repeatable welds
• Real-time parameter monitoring and recording at 1 s intervals for process control and documentation
• On-screen visualization and export via WeldData software for WPS documentation and analysis
• Remote control and monitoring via Ethernet, optional WiFi or optional wired pendant for flexible operation
• Compatibility with AXXAIR and major orbital welding brands via adapter kits for greater versatility
• Built-in alarms for arc voltage, gas flow, cooling liquid, inverter operation and motorisation
• Optional dual independent gas lines with flow management and optional wire feeder connector for automation
• Optional detachable 700 W water cooling unit (tool-free) with minimum flow alarm for thermal management

Specifications
Type: Orbital TIG welding power source, autoline, 200 A output
Welding current: DC
Supply voltage: Single phase with ground, 110–230 V ±15%, 50/60 Hz
Duty cycle: 25% @ 200 A (230 V); 35% @ 140 A (110 V); 100% @ 115 A (230 V); 100% @ 100 A (110 V)
Protection rating: IP21
Data acquisition: USB key (program and profile export)
Connectivity: Ethernet standard; WiFi optional; optional wired pendant control

Technical specifications

• Model: SAXX-201
• Output current: 200 A
• Welding process: Orbital TIG (DC)
• Interface: 7-inch colour touchscreen
• User access: Operator, welder, administrator (3 levels)
• Traceability: Real-time recording every second; USB export for WeldData and WPS documentation
• Alarms: Arc voltage, gas flow, cooling liquid, inverter operation, motorisation
• Optional hardware: Integrated printer; dual independent gas lines with flow management; wire feeder connector; detachable water cooling unit 700 W (tool-free) with minimum flow alarm
• Compatibility: Adapter kits for AXXAIR and major orbital welding brands
