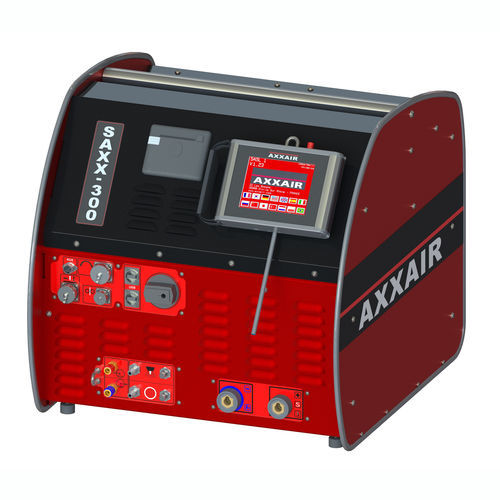

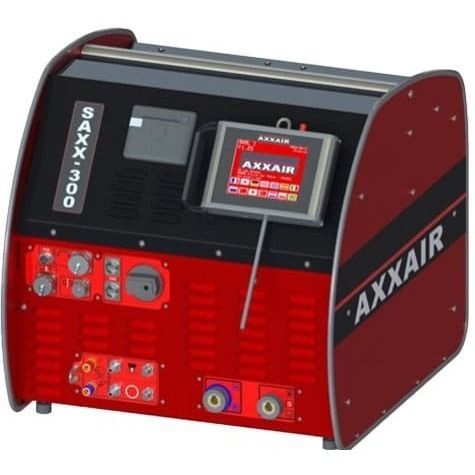

TIG welding generator SAXX-300

orbitalthree-phaseautomated

Description
The SAXX-300 orbital TIG welding power source provides a 300 A output for autoline orbital TIG applications. It combines intuitive programming with automatic parameter calculation and guided setup, a color touchscreen, a 4 m wired remote pendant and a detachable water-cooling unit. The system supports Ethernet connectivity and optional WiFi and is prepared for Industry 4.0 integration.

Product Advantages

• Intuitive programming with automatic parameter calculation and guided assistance for fast, repeatable setup
• Color touchscreen with multilingual interface and 4 m remote pendant for flexible workshop and field operation
• Integrated printer for local printing of welding programs and actual parameters to support traceability
• USB data acquisition with storage for up to 200 welding programs to ensure consistent results
• Real-time monitoring and recording of welding parameters every second for full process control
• Remote data transfer via USB and support for WeldReport export to WPS format for procedure documentation
• Advanced gas management with two independent gas lines and measured control of shielding and purge gas; torch with internal gas flow control
• Remote control and monitoring via Ethernet or optional WiFi using compatible remote HMI apps
• Compatibility with AXXAIR and major orbital welding brands via adapter kits for increased versatility
• Industry 4.0 ready with Ethernet, USB software updates and WeldReport integration
• Built-in alarms for arc voltage, gas flow, cooling liquid, inverter operation and motorization
• Wire feeder connector for integration with automated wire feed systems

Control, traceability and connectivity
Welding parameters are recorded every second and stored on a USB key. Data can be exported for analysis with WeldReport and converted to WPS/DMOS formats for procedure documentation. The unit includes Ethernet connectivity and optional WiFi for remote monitoring; software updates are available via USB.

Operation and configuration
5" color touchscreen (specifications also reference a 5.7" option), multilingual menus, and a 4 m remote pendant allow flexible use in workshop or on site. An integrated printer produces hardcopy records of programs and actual parameters. The detachable water-cooling unit enables adaptable cooling arrangements depending on site requirements.

Technical specifications

• Model: SAXX-300 — Orbital TIG welding power source, 300 A, Autoline
• Welding current type: DC
• Supply voltage: Three-phase with earth, 400 V ± 15%, 50/60 Hz
• Duty cycle: 300 A @ 30%, 240 A @ 60%, 210 A @ 100% (at 400 V)
• IP rating: IP21
• Data acquisition: USB key; storage up to 200 welding programs; export via WeldReport to WPS
• Alarms: arc voltage, gas flow, cooling liquid, inverter operation, motorization
• Screen: 5" color touchscreen (5.7" referenced in some materials)
• Languages supported: French, English, German, Spanish, Italian, Russian, Chinese, Korean, Japanese, Turkish, Dutch, Polish, Portuguese
• Industry 4.0 connections: Ethernet port; WiFi optional
• Integrated printer: Yes
• Gas management: Two independent gas lines; torch with internal gas flow control
• Cooling: Detachable water-cooling unit
• Compatibility: Adapter kits for integration with other orbital welding brands; wire feeder connector
