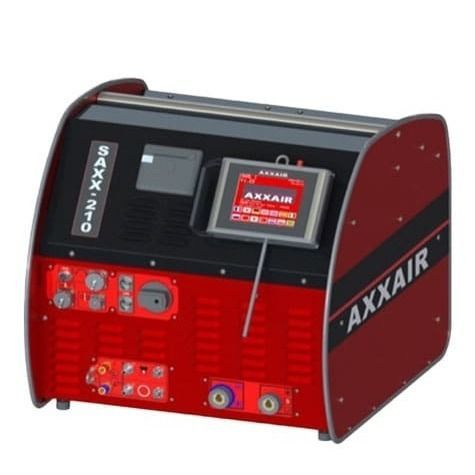

TIG welding power supply SAXX-210orbitalsingle-phaseDC
Add to favorites
Compare this product
Characteristics
- Technique
- TIG, orbital
- Power supply
- single-phase
- Output current
- DC
- Other characteristics
- water-cooled, for Industry 4.0, with integrated display, with wire feeder, inverter
- Intensity
Max.: 210 A
Min.: 110 A
Description
Product overview
The SAXX-210 orbital TIG welding power source provides a 210 A DC output in an autoline configuration for repeatable orbital welds. It combines an intuitive color touchscreen interface, a 4 m remote pendant and measured gas control to support traceable, automated welding processes. Data acquisition, connectivity and integrated documentation features facilitate process control and quality records.
Key capabilities
Specifications (extracted)
Description: Orbital TIG welding power source, 210 A, autoline
Welding current type: DC
Supply voltage: Single-phase with ground, 110–230 V ±15%, 50/60 Hz
Duty cycle: 210 A @ 50% (230 V); 127 A @ 60% (110 V); 160 A @ 100% (230 V); 110 A @ 100% (110 V)
IP rating: IP21
Data acquisition: USB key; records parameters every second; stores up to 200 programs
Screen size: 5" (table) / 5.7" (referenced elsewhere)
Languages: FR, EN, DE, ES, IT, RU, ZH, KO, JA, TR, NL, PL, PT
Industry 4.0: Ethernet port; optional WiFi
Additional notes
The SAXX-210 orbital TIG welding power source provides a 210 A DC output in an autoline configuration for repeatable orbital welds. It combines an intuitive color touchscreen interface, a 4 m remote pendant and measured gas control to support traceable, automated welding processes. Data acquisition, connectivity and integrated documentation features facilitate process control and quality records.
Key capabilities
- Automatic parameter calculation and guided programming for fast, repeatable setup
- Color touchscreen (5" / 5.7" referenced) with multilingual UI and a 4 m remote pendant for flexible operation
- Integrated printer and USB export for documentation and WPS support (WeldReport compatibility)
- USB data acquisition logging welding parameters every second; storage up to 200 welding programs
- Real-time monitoring and alarms for arc voltage, gas flow, cooling liquid, inverter operation and motorization
- Advanced gas management: two independent gas lines and torch with internal gas flow control for precise shielding and purge delivery
- Ethernet connectivity (WiFi optional) and remote HMI support for Industry 4.0 integration
- Wire feeder connector and adapter kits for compatibility with AXXAIR and major orbital welding brands
- Detachable water cooling unit for efficient cooling and serviceability
Specifications (extracted)
Description: Orbital TIG welding power source, 210 A, autoline
Welding current type: DC
Supply voltage: Single-phase with ground, 110–230 V ±15%, 50/60 Hz
Duty cycle: 210 A @ 50% (230 V); 127 A @ 60% (110 V); 160 A @ 100% (230 V); 110 A @ 100% (110 V)
IP rating: IP21
Data acquisition: USB key; records parameters every second; stores up to 200 programs
Screen size: 5" (table) / 5.7" (referenced elsewhere)
Languages: FR, EN, DE, ES, IT, RU, ZH, KO, JA, TR, NL, PL, PT
Industry 4.0: Ethernet port; optional WiFi
Additional notes
- USB export enables analysis with WeldReport and WPS documentation workflows
- Software updates supported via USB
- Remote control and monitoring possible via Ethernet or optional WiFi with supported remote HMI app
- Designed for workshop and field use with removable water cooler and robust alarm set for process protection
