Air-cooled welding head SAMX-25 series

water-cooledfor tubeshigh-precision

Overview

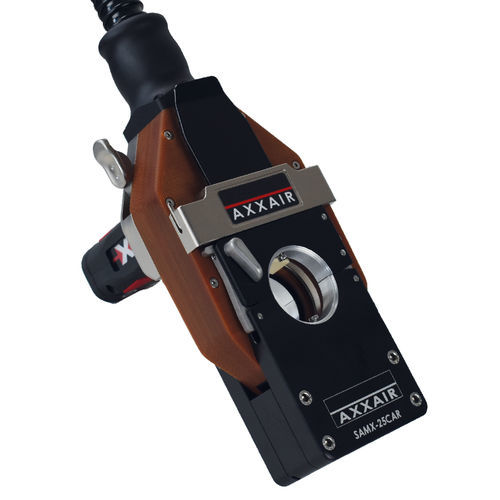

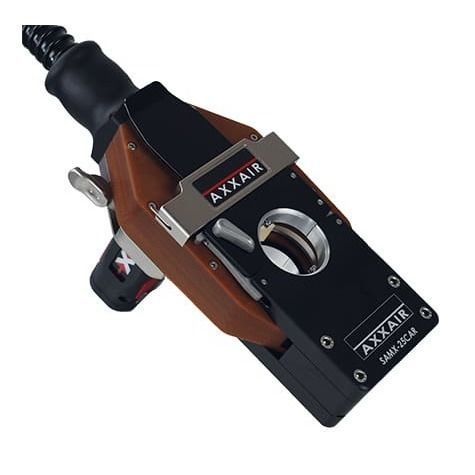

The AXXAIR SAMX-25 microfit closed weld head with cassettes is designed to deliver precision and reliability for a wide range of tube and fitting configurations. Built to accommodate diameters starting at 6 mm (0.236"), the SAMX-25 offers versatility for tube-to-tube, tube-to-fitting, and fitting-to-fitting welding applications in industries such as semiconductors, aerospace, and pharmaceuticals.

Main capabilities
Tube OD range: 0.236 - 1" / 6 – 25.40 mm
Cooling: Air or water cooled (depending on variant)

Key features

• High level of performance with a high duty cycle.
• Grease-free operation: compatible with clean room standards.
• Optimized cassette clamping system ensures proper tube positioning and prevents deformation.
• Optimized inert gas diffusion for welds with very limited coloration.
• Easy maintenance and cleaning: single integrated tool for disassembly, electrode adjustment/replacement and jaw positioning.
• Constant locking effort ensures steady cassette holding without risk of over-tightening.
• Belt hook for convenient carrying and easy access.

Specifications table (by variant)
Part No. | SAMX-25A | SAMX-25E
Description | Microfit closed weld head with 8m / 26ft cable - Air cooled | Microfit closed weld head with 8m / 26ft cable - Water cooled
Tube diameter | 0.236 – 1" / 6 – 25.40 mm | 0.236 – 1" / 6 – 25.40 mm
Electrode diameter | 1/16" / 1.6 mm | 1/16" / 1.6 mm
Weight with cable | 14 lbs / 6.5 kg | 14 lbs / 6.5 kg
Duty cycle | 75 A at 50% | 100 A at 80%
Max welding current | 100 A | 120 A
Operating temperature | +0°C / +40°C (32°F / 104°F) | +0°C / +40°C (32°F / 104°F)
Power supplies | AXXAIR SAXX power supplies | AXXAIR SAXX power supplies

Product advantages

• High duty cycle and reliable performance for demanding applications.
• Designed for clean environments (grease-free).
• Precise tube positioning with minimized risk of part deformation.
• Improved inert gas diffusion for superior weld appearance.
• Integrated maintenance tool simplifies routine service tasks.

Notes
Designed for welding tube-to-tube, tube-to-fitting and fitting-to-fitting configurations. User manual and product brochure are referenced as product resources.

Caractéristiques / spécifications techniques

• Model / Series: SAMX-25
• Tube OD range: 0.236 - 1" / 6 – 25.40 mm
• Cooling system: Air cooled (SAMX-25A) or Water cooled (SAMX-25E)
• Part numbers: SAMX-25A (air cooled), SAMX-25E (water cooled)
• Electrode diameter: 1/16" / 1.6 mm
• Weight (with cable): 14 lbs / 6.5 kg
• Duty cycle: SAMX-25A = 75 A at 50%; SAMX-25E = 100 A at 80%
• Max welding current: SAMX-25A = 100 A; SAMX-25E = 120 A
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Power supply compatibility: AXXAIR SAXX power supplies
