Orbital welding head X-500 series

water-cooledair-cooledprecision metal joining

Overview

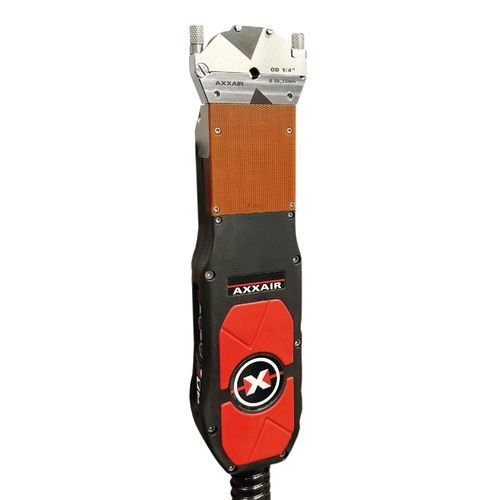

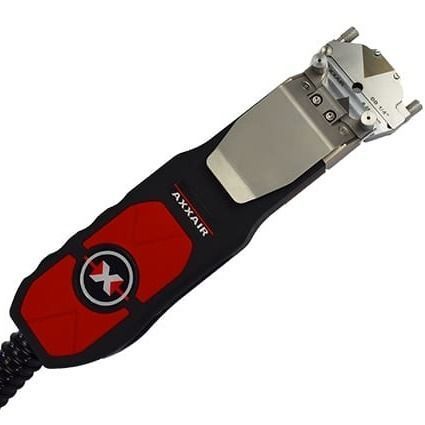

The AXXAIR X-500 is the thinnest closed orbital welding head in the AXXAIR range, engineered for precision orbital welding of micro‑fittings and small‑diameter tubes in confined spaces. Designed for critical environments — semiconductor fabrication, aerospace assembly and pharmaceutical production — it supports grease‑free operation and optimized inert gas diffusion to ensure clean, repeatable welds.

Key Data
TUBE OD RANGE: 0.118 – 0.5" / 3 – 12.7 mm
COOLING SYSTEM: Air or water cooled

Product Advantages

• Ultra‑slim profile: minimum clearance ½" (12.7 mm) for access in tight spaces.
• Microfit compatibility: designed for Microfit‑to‑Microfit joints.
• Diameter‑specific clamping cassettes: secure fit across 3–12.7 mm range.
• Grease‑free operation: suitable for cleanroom and high‑purity environments.
• Optimized inert gas diffusion: minimizes weld discoloration.
• Cooling options: air‑cooled and liquid‑cooled variants available.
• Productivity: up to 20 welds/hour (air‑cooled) and 30 welds/hour (liquid‑cooled) on 12.7 mm Ø, 1.24 mm thick stainless tube.
• Easy maintenance: integrated single tool for rotor disassembly, cleaning and electrode handling.
• Control compatibility: works with AXXAIR power supplies or integrates with third‑party systems; AMI‑compatible variants available.

Part Numbers and Descriptions
Part No. | Description
X-500A | Microfit closed weld head with 8 m (26 ft) cable — Air cooled
X-500E | Microfit closed weld head with 8 m (26 ft) cable — Water cooled
X-500MIA | Microfit closed weld head with 8 m (26 ft) cable — Air cooled — Compatible with AMI power source
X-500MIE | Microfit closed weld head with 8 m (26 ft) cable — Water cooled — Compatible with AMI power source

Part No. | Tube diameter
X-500A / X-500E / X-500MIA / X-500MIE | 0.118 – 0.5" / 3 – 12.7 mm

Part No. | Electrode diameter
X-500A / X-500E / X-500MIA / X-500MIE | 0.040" / 1.0 mm

Part No. | Weight with cable
X-500A / X-500E / X-500MIA / X-500MIE | 12.3 lbs / 5.6 kg

Part No. | Maximum welds per hour (on 12.7 mm dia, 1.24 mm thick stainless steel tube)
X-500A / X-500MIA | 20
X-500E / X-500MIE | 30

Part No. | Max welding current
X-500A / X-500E / X-500MIA / X-500MIE | 80 A

Part No. | Operating temperature
X-500A / X-500E / X-500MIA / X-500MIE | +0°C / +40°C (32°F / 104°F)

Accessories & Features
Quick‑fit mounting system for rapid cassette setup; diameter‑specific clamping cassettes; integrated hook for hanging on supports; single integrated tool for rotor cleaning and electrode handling; narrow design enables welding of straight tube lengths as short as 6.35 mm (0.25").

Technical specifications

• Model: X-500 (Microfit closed weld head)
• Tube OD range: 0.118 – 0.5" / 3 – 12.7 mm
• Cooling: Air or water cooled (depending on variant)
• Electrode diameter: 0.040" / 1.0 mm
• Weight with cable (8 m): 12.3 lbs / 5.6 kg
• Maximum welds per hour: 20 (air‑cooled) / 30 (liquid‑cooled) — measured on 12.7 mm Ø, 1.24 mm thick stainless tube
• Max welding current: 80 A
• Operating temperature: 0°C to +40°C (32°F to 104°F)
• Clearance requirement: ½" (12.7 mm)
• Compatible power options: AXXAIR power supplies or AMI‑compatible variants available
