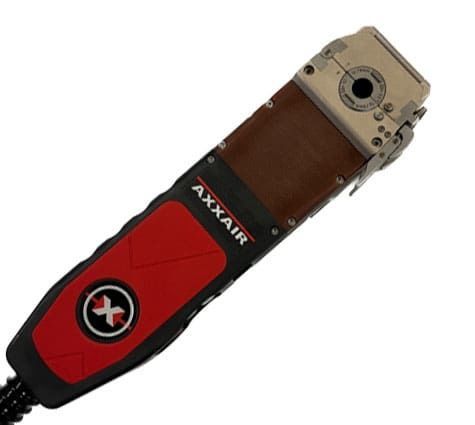

Water-cooled welding head X-750 series

orbitalfor tubesfor microjoining

Overview
The AXXAIR X-750 is an orbital microfit closed weld head for welding tubes and micro‑fittings in confined or tight areas. Water‑cooled construction and grease‑free components make it suitable for cleanroom and high‑purity environments common in semiconductor, aerospace and pharmaceutical applications. The unit supports high duty‑cycle operation and features a quick‑connect system for efficient setup and maintenance.

Key information
TUBE OD RANGE: 0.118 – 0.75" / 3 – 19.05 mm
COOLING SYSTEM: Water‑cooled

Specifications (table)
Part No. — X-750E — X-750MIE
Description — Microfit closed weld head with 8 m (26 ft) cable; Water cooled — Microfit closed weld head with 8 m (26 ft) cable; Water cooled; Compatible with AMI power source
Tube diameter — 0.118 – 0.75" / 3 – 19.05 mm — 0.118 – 0.75" / 3 – 19.05 mm
Electrode diameter — 0.040" or 1/16" / 1.0 mm or 1.6 mm — 0.040" or 1/16" / 1.0 mm or 1.6 mm
Weight with cable — 12.8 lbs / 5.8 kg — 12.8 lbs / 5.8 kg
Maximum welding current — 120 A — 120 A
Duty cycle — 80 A at 60% — 80 A at 60%
Operating temperature — +0°C / +40°C (32°F / 104°F) — +0°C / +40°C (32°F / 104°F)
Power supplies — AXXAIR SAXX power supplies — AMI power supplies with auto-calibration

Product Advantages

• Designed for tight spaces: ideal for welding tubes and micro‑fittings in confined or restricted environments.
• Grease‑free operation: compatible with cleanroom and high‑purity requirements.
• Quick‑connect stainless steel collets: cover 3–19.05 mm (0.118"–¾") OD with secure retention without set screws.
• Adjustable force clamping system: allows precise adjustment of collet clamping force and assists opening after welding.
• Water‑cooled design: supports high duty‑cycle orbital welding for consistent performance during prolonged operations.
• Easy maintenance: rotor cleaning and electrode replacement aided by an integrated tool in the machine body.

Accessories
Offset electrode kit available for microfit‑to‑microfit welding.

Technical specifications

• Model / Part numbers: X-750E, X-750MIE
• Tube OD range: 0.118 – 0.75" (3 – 19.05 mm)
• Cooling: Water‑cooled
• Electrode diameter options: 0.040" or 1/16" (1.0 mm or 1.6 mm)
• Weight with cable: 12.8 lbs / 5.8 kg
• Maximum welding current: 120 A
• Duty cycle: 80 A at 60%
• Operating temperature range: 0°C to +40°C (32°F to 104°F)
• Compatible power supplies: AXXAIR SAXX; AMI (auto‑calibration for X-750MIE)
