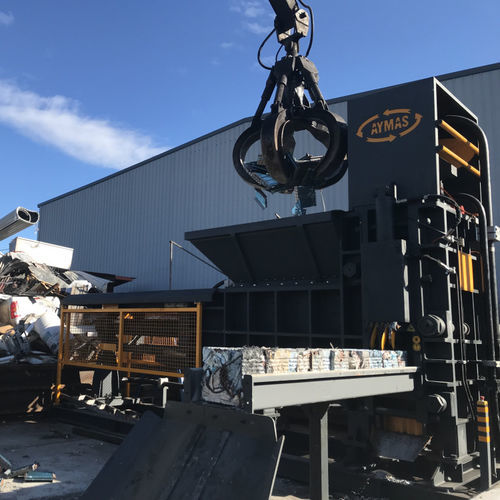

Scrap metal baling press HP3-C (40x40)

horizontaltop-loadingautomatic

Also, different models are available! IMPORTANT:MACHINE WILL BE BRAND NEW HIGH-SPEED CONTINUOUS FEEDING SCRAP BALER HP3-C (40x40) The compression chamber walls are covered with HARDOX material for long-term life-cycle and friction resistance. A hydraulic Oil Cooling system is implemented for efficiency in hot climate conditions. Cylinder Rods are induction-hardened and chrome-plated. Pumps and valves of hydraulic systems are from worldwide reputable brands such as PARKER, and BOSCH-REXROTH. The machine is fully automatic by PLC control. It is easy to use with the help of the touch screen. All electrical and electronic parts are by SCHNEIDER and SIEMENS Brands. The machine is CE–certified.Marking certifies that a product has met European Directives regarding consumer safety, health, or environmental requirements. The machine will be under AYMAS Makina. Guarantee against manufacturing defects for one year or 2500 working hours. SEE THE TECHNICAL DESCRIPTION BELOW Bale Size - 400mm x 400mm x... Bale Weight - 120-180 kg (Steel), 50-80 kg (Aluminium),150-250 kg (Copper) Press Box Dimensions (Width x Length x Height): 1.000mm x 2.700mm x 900mm Loading Bunker Dimensions (Width x Length x Height): 1.650mm x 2.300mm x 800mm Feeding Opening: 1.000mm x 1.600mm Capacity* <= up to 16 tons/hour (Steel), up to 6 tons/hour (Aluminium), up to 20 tons/hour (Copper) Bales Per Hour: 110-120 pieces Cycle Time: 30 seconds Preliminary Compression Thrust: 150 tons Secondary Compression Cylinder Thrust: 210 tons Main Compression Ram Thrust: 300 tons Working Pressure: 300 bars Electric Motor: 150 kW Machine Weight: 58.000 kg * Capacity may vary depending on the material & feeding style
