MACHINERY WILL BE BRAND NEW
CP (50X30) USED BEVERAGE CAN BALER
The machine is available to bale aluminum cans as well as steel cans up to 3 liters of volume. All electric-electronic components used are Schneider and Siemens Brands. The machine is fully automatic with PLC control and a touch screen Siemens HMI Simatic Panel with emergency buttons. Machine is under AYMAS Makina San. Ve Tic. A. S. Guarantee for one (1) year or two thousand five hundred (2.500) operation hours, whichever comes first. An Oil cooling/heating system depends on the operation zone.

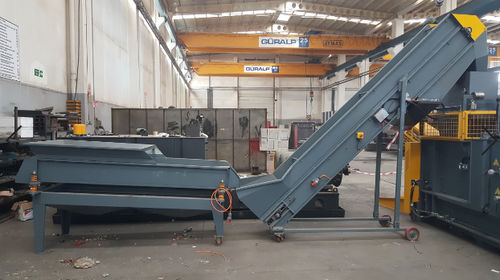

MB 500 Magnetic Separator and VH (120-250) Vibration Hopper are optional for separating steel cans.
SEE THE TECHNICAL DESCRIPTION BELOW
Bale Size: - 500mm x 330mm x ...
Container Dimension (Width x Length x Height ): 500mm x 1.000mm x 330mm
Capacity: Up to 1.000 kg/hour (Aluminum), Up to 2.000 kg/hour (Steel)
Bale weighs with a mechanic scale system: 10-20 kg
Cycle Time: 30 seconds
Top Cover Cylinder Force: 25 tons
Main Compression Cylinder Force: 100 tons
General Working Pressure: 225 bars
Machine Dimensions (Width x Length x Height) - 1.100mm x 4.200mm x 2.600mm
Electric Motor: 18,5 kW
Machine Weight: 5.000 kg
