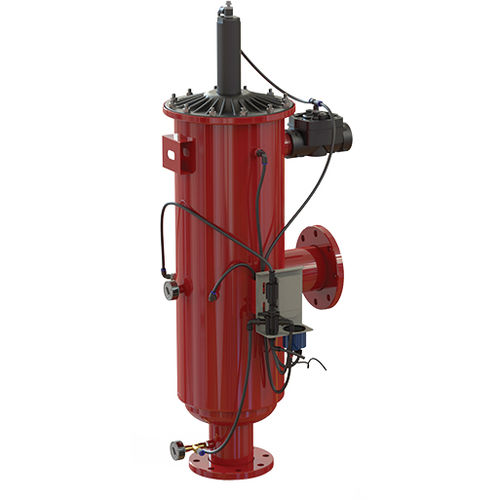

Water filter VBE series

cartridgeprocessstainless steel

Body MaterialST-37 / AISI 316L / AISI 304 L Screen MaterialAISI 304L , PRGF Maximum Working Pressure10 bar (145 Psi) (optionally up to 25 bars (360 psi) Maximum Output Pressure2 bar (29 Psi) Maximum Working Tempreture60 ⁰ C (140 F) Back Flushing TypeTime and / or Pressure Differantial Back Flush Control SystemElectronic (AC/DC ) , Hydraulic Control Filtration Degree20-2000 micron (µ Painting MethodElectrostratic Powder Cotaing Paint MaterialEpoxy Polyester Aytok Hydrofilt VBE/CVBE filters; are electronically controlled capable of fully automatic backwash filters. For this process, instead of extra energy the pumping of water will be enough. However, detection of pollution and for the initiation of back-washing, the panel must be fed wit a suitable electric installation. By the help of pressure which is occured after the speed that water gets from the pomp, filter cleans itself. So it is provided the self-cleaning of the filter. Filtration process continues while this backwash mechanism is working. Dirty water which occures in this process automatically discharged during backwash. Considering these aspects VBE series, and the version of stainless steel body CVBE serie fully automatic filters, are more agile and efficient according to manually backwash and semi-automatic backwash systems. In addition, minimizes user time and loss of water. In sample view of the CVBE filter in Picture-1 is used stainless steel body.
