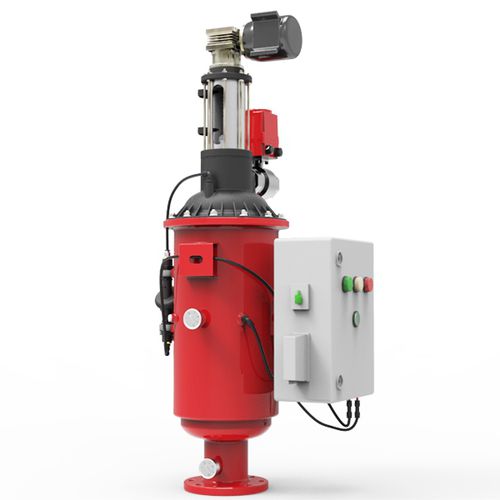

Water filter VRF series
cartridgebackwashautomatic

water filter
water filter
water filter
water filter
water filter
water filter
Add to favorites
Compare this product


Characteristics

Designed for
water
Filtration element
cartridge
Cleaning
backwash
Other characteristics
automatic, high-performance
Filtration size

Min.: 20 µm

Max.: 2,000 µm

Operating pressure

Min.: 0 bar (0 psi)

Max.: 25 bar (362.594 psi)

Flow

Min.: 40 m³/h (1,412.587 ft³/h)

Max.: 160 m³/h (5,650.347 ft³/h)

Description

Body MaterialST-37 / AISI 316L / AISI 304 L Screen MaterialAISI 304L , PRGF Maximum Working Pressure10 bar (145 Psi) (optionally up to 25 bars (360 psi) Maximum Output Pressure2 bar (29 Psi) Maximum Working Tempreture60 ⁰ C (140 F) Back Flushing TypeTime and / or Pressure Differantial Back Flush Control SystemElectronic (AC/DC ) , Hydraulic Control Filtration Degree20-2000 micron (µ Painting MethodElectrostratic Powder Cotaing Paint MaterialEpoxy Polyester The filter body is St-37 or stainless-steel optionality The filtering in pressured lines High performance during the back washing Extensive Filtering Surface Easy-to assembly and fitler components, not required to change 100% back washing performance The back washing time for 50-30 sec. Working opportunity, not required additional energy The minimum head and water loss
