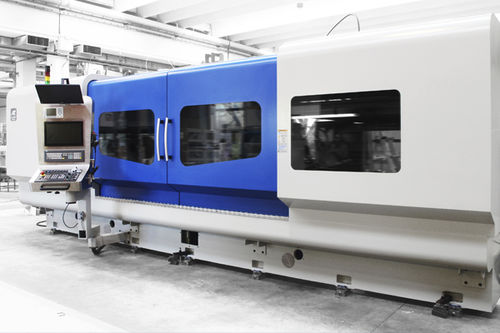

External cylindrical grinding machine RU1600

internal cylindricalfor gearsfor shaft

AZ RU universal grinding machines are high performance machines designed for customers who have to work with high precision tolerances. Constructive features are projected to ensure maximum machine stability during all the process phases. Thanks to a wide combination of wheelhead spindles, different types of machining can be integrated in a single clamping: external, internal, shoulder, face and taper grinding. The grinding process is constantly monitored thanks to high-level and last-generation measurement and controls systems. The RU machines range meets the requests of a wide range of industries: aerospace, railways, automotive, energy, precision mechanical components. MACHINE CONFIGURATION Designed for OD and ID grinding of aircraft components and landing gear Wheelhead moves on X-Z and B axes Base made of cast iron X and Z axis movement on linear guideways workpiece support: 3 points manual steady rest workpiece driving system: tailored to the customer's piece measurement system: in-process diameter control with 2 points measurement that moves by carriage along Z axis, hydrophone for wheel-workpiece contact control, modular multi-function system for grinding process control, CNC Siemens control system AZ grinding process monitoring system-dome camera and monitor SPECIFICATIONS Height of centres 400 [mm] Swing over table 800 [mm] Max length of OD grinding 1800 [mm] APPLICATIONS AEROSPACE INDUSTRY Aircraft components and landing gear
