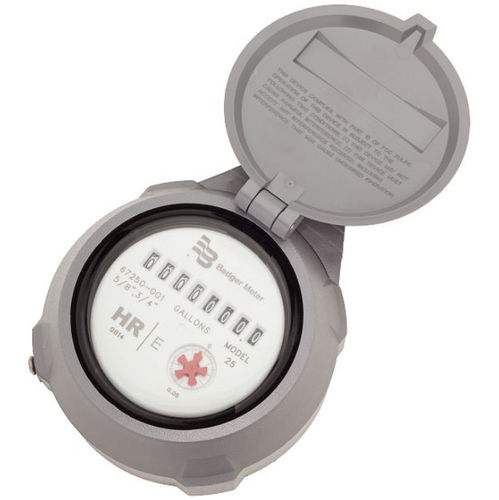

Absolute rotary encoder HR-E®

magneticmechanicalnon-contact

The High Resolution Encoder (HR-E) features a straight reading, permanently sealed, magnetic drive and communicates using the industry standard ASCII communication protocol to provide a high resolution encoded output. Proven Technology. Durable Construction. The 8-dial High Resolution Encoder (HR-E®) uses non-contact, field-proven, light-emitting diode technology to provide an 8-digit reading, while also eliminating the friction and wear of traditional mechanical encoders. Endpoint Compatibility. Compatible with Badger Meter ORION® family of endpoints and other approved technologies. Durable Design. Built with a unique adhesive sealing technology to withstand harsh environments, including flooded pits. Simple Installation. Available in a terminal screw version for easy installation, with no programming or setting adjustments required. Specifications Units of Measure U.S. Gallons, Cubic Feet, Cubic Meters, clearly identified on encoder face Electronic Resolution 8-dial resolution for AMR/AMI; 4-8-dial resolution for BadgerTouch Signal Type 3-wire synchronous for AMR/AMI solutions, 2-wire asynchronous for Touch solutions
