Pressure tester MC4000

sensordiagnostichandheld

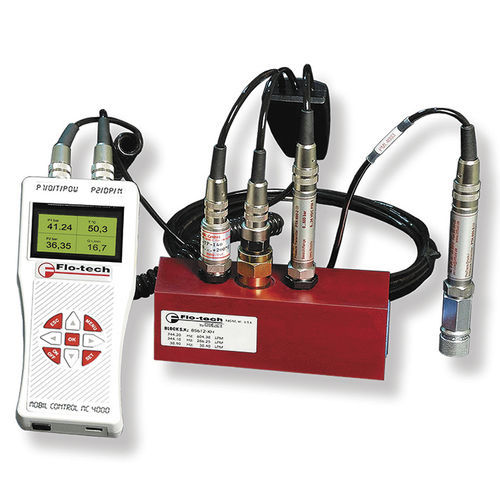

The Flo-tech MC4000 Diagnostic Tester is a handheld hydraulic analyzer that offers instant and recordable diagnostics. Instant Diagnostics. Recordable Measurements. The Flo-tech MC4000 handheld hydraulic system analyzer offers instant and recordable diagnostics with built-in data logging. Sensor Inputs. Equipped with inputs for two pressure sensors, one flow sensor and one active pick-up for RPM measurements. All four sensors can be connected at the same time. Instant Results. Offers instant and recordable diagnostics to help users monitor operations. Measurement Storage. Stores measurement results in an internal 2.5 MB memory space—each stored measurement contains the day, date and time derived from an internal real-time clock. Specifications Temperature Range –20…150 °C Flow Range 1.5...605 l/min Pressure Range Up to 400 Bar Accuracy ±1% Repeatability ±0.2% Power Battery Charger 6V, 2 Ah | 100...240V AC Memory 2.5 MB of data logging memory
