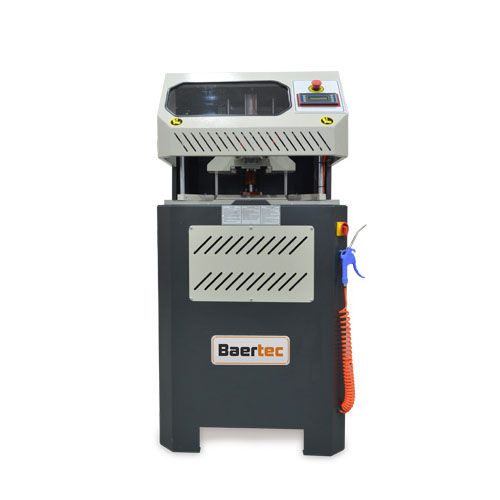

Description
• Mills the welding seam at the outer corners of welded profiles with two different set of disk cutters.
• Full automatic PLC operating system.
• Automatic identification and cutter set positioning for frame and sash profiles.
• Four different cutter sets can be settled.- All operations are controlled by the digital touchscreen display.
• Automatic system for pushing the welded profiles to the back fence to provide accurate centering.
• The profiles are fixed by horizontal clamps to ensure optimum work piece fixing.
• Standard equipped with profile support arms.
• This model can be used with 8 cutter groups.
Technical Features
• Power supply: 400 V, 3ph, 50-60 Hz
• Power output: 1.1 kW
• Spindle speed: 2,800 r.p.m.
• Max. cutter diameter: 160 mm.
• Max. Profile Width: 120 mm
• Max. Profile Height 90 mm
• Min. Profile Height 40 mm
• Air pressure: 6-8 bar
• Machine weight:182 kg
