Grooving angled deburring machine 2KT 004
for PVC profilesfully-automatic

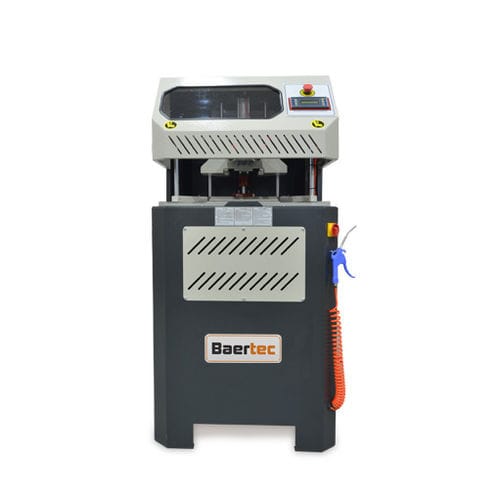

Grooving angled deburring machine - 2KT 004 - Baertec - for PVC profiles / fully-automatic

Grooving angled deburring machine - 2KT 004 - Baertec - for PVC profiles / fully-automatic - image - 2

Grooving angled deburring machine - 2KT 004 - Baertec - for PVC profiles / fully-automatic - image - 3

Grooving angled deburring machine - 2KT 004 - Baertec - for PVC profiles / fully-automatic - image - 4

Grooving angled deburring machine - 2KT 004 - Baertec - for PVC profiles / fully-automatic - image - 5

Add to favorites

Compare this product

Characteristics

Associated function: grooving
Applications: for PVC profiles
Other characteristics: fully-automatic

Description

Description • Cleans the welding seam on lower, upper surfaces of welded profiles with grooving knives. • Mills the welding seam at the outer corners of welded profiles with two different set of disk cutters. • Full automatic PLC operating system. • Automatic identification and cutter set positioning for frame and sash profiles. • Four different cutter sets can be settled.- All operations are controlled by the digital touchscreen display. • Automatic system for pushing the welded profiles to the back fence to provide accurate centering. • The profiles are fixed by horizontal clamps to ensure optimum work piece fixing. • Standard equipped with profile support arms. • This model can be used with an 4 cutters group. Technical Features • Power supply: 400 V, 3ph, 50-60 Hz • Power output: 1.1 kW • Spindle speed: 2,800 r.p.m. • Max. cutter diameter: 160 mm. • Max. Profile Width: 120 mm • Max. Profile Height 90 mm • Min. Profile Height 40 mm • Machine weight: 173 kg
