Ball bearing guideway GGT / GGK
aluminum

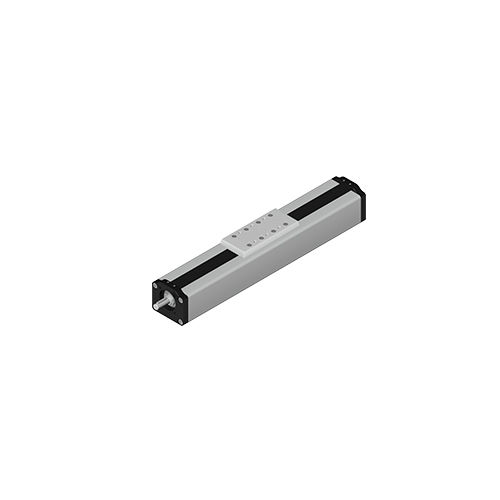

Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum - image - 2
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum - image - 3
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum - image - 4
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum - image - 5
Ball bearing guideway - GGT / GGK - Bahr Modultechnik GmbH - aluminum - image - 6
Add to favorites
Compare this product

Characteristics

Technology
ball bearing
Other characteristics
aluminum
Rail length

242 mm
(9.53 in)

Rail width

42 mm
(1.65 in)

Load

Max.: 4,200 N

Min.: 1,000 N

Description

Size: 90 Spindle axis for wheelchair lifting systems, lifting platforms and other lifting applications. Mechanical linear unit with two internal sliding guides. The carriage is moved by means of a rotating thread spindle with an assigned follower nut. The openings in the guide body are closed by a plastic cover band. Repeating accuracy: Trapezoidal thread: ± 0.2 mm Ball screw: ± 0.025 mm
