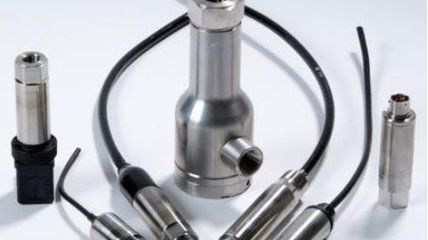

Relative pressure sensor UNIK5000 siliconanalogstainless steel
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- silicon
- Output
- analog
- Material
- stainless steel
- Applications
- for OEM, automotive, for water treatment, for the aeronautical industry, for marine applications
- Other characteristics
- custom-made, economical
- Pressure range
Min.: 0.07 bar
(1.02 psi)Max.: 700 bar
(10,152.64 psi)- Precision
0.04 %
- Process temperature
Min.: -55 °C
(-67 °F)Max.: 125 °C
(257 °F)
Description
The UNIK5000 is a high-performance configurable solution to pressure measurement. The use of micromachined silicon technology and analog circuitry enables best in class performance for stability, low power, and frequency response. The new platform enables you to easily build up your own sensor to match your own precise needs. This high performance, configurable solution to pressure measurement employs modular design and lean manufacturing techniques.
Features of the UNIK5000 include:
Stainless Steel construction
Frequency response to 3.5 kHz
High overpressure capability
Hazardous Area certifications
mV, mA, voltage, and configurable voltage outputs
Multiple electrical and pressure connector options
Online configuration tool
