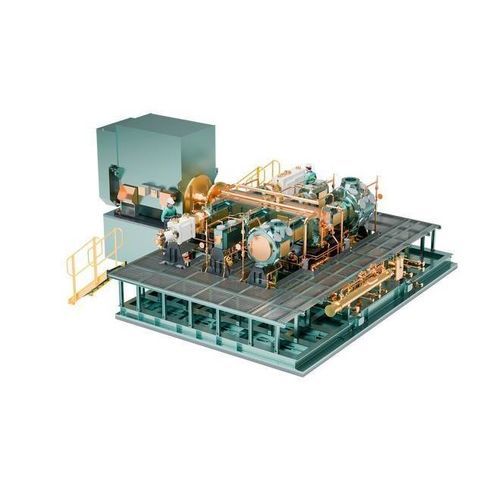

Reciprocating compressor Hyrcel

hydrogenstationaryoil-free

Overview
Reciprocating, oil-free compressors designed for hydrogen production, storage and low–medium pressure trailer filling. Engineered for horizontal frames and leveraging API 618 refinery and petrochemical hydrogen compression experience to deliver efficient operation, simplified installation and low maintenance requirements.

Benefits

• High capacity and proven reliability to optimize CAPEX and plant throughput
• Modular skid-mounted solution for standard transport and rapid on-site installation
• Oil-free design to minimize hydrocarbon contamination risk in hydrogen streams
• Reduced maintenance time thanks to service-oriented layout and accessible components

Features

• Modular, oil-free reciprocating design
• 2 to 8 cylinders arranged in horizontal frames
• Rated up to 350 bar maximum operating pressure
• Tandem cylinder configuration with capacity up to ≈12 t/day hydrogen
• Low maintenance time and engineered serviceability
• Reliability >99.95% and availability >98.5%

Applications

• Hydrogen production plants
• Low–medium pressure tube-trailer filling
• Hydrogen storage and buffer systems

Technical specifications

• Compression type: reciprocating, oil-free
• Cylinder count: modular options from 2 to 8 cylinders (horizontal frames)
• Maximum operating pressure: up to 350 bar
• Tandem cylinder option: capacity up to ≈12 t/day hydrogen
• Design: skid-mounted modular units for transport and simplified installation
• Performance targets: reliability >99.95%, availability >98.5%
• Serviceability: engineered for minimal maintenance time
