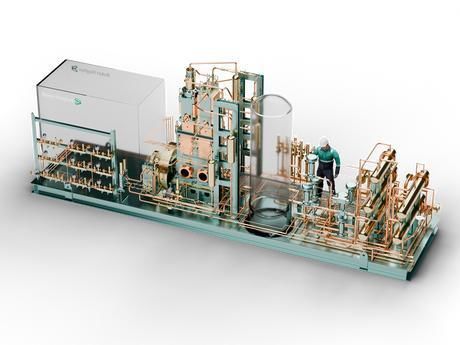

Hydrogen compressor VerHy 550 series

electricstationaryoil-free

Overview
Purpose-built vertical configuration to minimize footprint and facilitate site integration. Based on API 618 refinery and petrochemical hydrogen compression practices, the VerHy 550 is designed for oil-free hydrogen compression, high-pressure discharge up to 550 barA, and modular supply for transport and rapid installation.

Key statement
High-pressure hydrogen compression without any risk of gas contamination.

Benefits

• High capacity and industrial availability to optimize CAPEX and operational continuity
• Modular skid solution for standard transport dimensions and simplified on-site installation
• Vertical arrangement to reduce footprint and enable compact plant layouts

Features

• Oil-free modular design, 2 to 4 cylinders per vertical frame up to 550 barA
• Tandem cylinder vertical frames enabling 8+ ton/day capacity with multi-frame configurations
• Fast maintenance with vertical cylinder module swap capability to minimize downtime
• Reliability >99.95% and availability >98.5% (can exceed 99.0% with module swap)

Applications

• Hydrogen refuelling stations
• Filling of high/low-pressure tube trailers
• Hydrogen storage and bulk transfer for petrochemical/refinery sites

Tabulated technical summary
Model comparison: 2VerHy550 vs 4VerHy550
Discharge Pressure [barA] : 550 | 550
Flow (tons/day) : 2 | 8+
Piston Lubrication : Dry Piston | Dry Piston
Footprint [m x m] : 10x2.5 | 12x2.5
Absorbed Power [kW] : 225 | 450

Technical specifications

• Model: VerHy 550
• Configuration: Vertical frame, modular cylinder modules (2 to 4 cylinders per vertical frame)
• Maximum discharge pressure: 550 barA
• Flow capacity (examples): ~2 tons/day (2VerHy550); 8+ tons/day (4VerHy550)
• Piston lubrication: Dry piston
• Typical footprint examples: 10 x 2.5 m (2VerHy550), 12 x 2.5 m (4VerHy550)
• Absorbed power (examples): 225 kW (2VerHy550), 450 kW (4VerHy550)
• Design focus: oil-free hydrogen compression to eliminate contamination risk, modular skid supply for transport and installation
• Maintenance: reduced maintenance time with module-swap capability to minimize downtime
• Reliability/Availability targets: reliability >99.95%, availability >98.5% (can exceed 99.0% with module swap)
