Volumetric feeder

pneumaticautomaticcontinuous

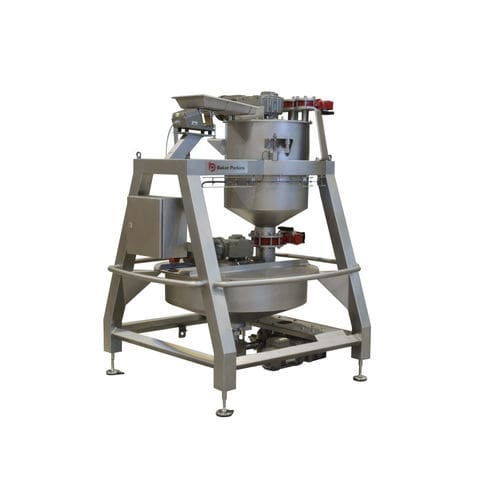

The Autofeed is a fully automatic high-accuracy system to weigh and mix up to eight dry and liquid confectionery ingredients and feed any cooker in Baker Perkins’ range. Efficiency and accuracy A standard accuracy of 0.1% in a typical 180kg batch eliminates errors associated with volumetric systems. Up to eight ingredients are weighed and mixed in batches, with the reservoir tank providing a continuous feed to the cooker. Flexibility Up to 20 different recipes can be pre-programmed and stored, maximizing flexibility and minimizing operator involvement and error. Tight control Full batch reporting ensures tight cost control so use of every ingredient can be accurately calculated. Output: up to 6,000kg/hr Batch size: 180kg (200l tank) Reservoir tank: 150l Cycle time: 8 minutes One vibratory chute for granulated sugar One solenoid operated water valve Three electro-pneumatic valves for liquid ingredients. Frame: 304 stainless steel Weigh tank: 316 stainless steel Reservoir tank: 316 stainless steel with heated base and insulated sides Product contact parts: 316 stainless steel Fully jacketed weigh and reservoir tanks for low water recipes 400l or 600l reservoir tanks Tank and metering pump skids for minor liquid ingredients (e.g. brine and lecithin) Powder feeder Polyol dissolving unit to handle sugar-free syrups Automatic CIP (Clean-in-Place) system – improved cleaning with less water Heavy-duty mixer for high-viscosity slurries and high outputs Multiple outlets Twin tanks to avoid cross-contamination of
