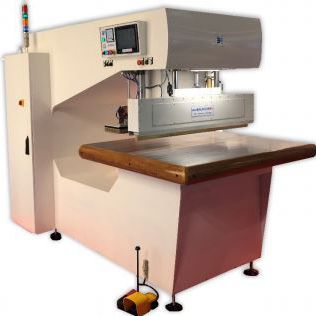

High-frequency welding machine BR15PT1000/1200N

PLC-controlledpneumaticvacuum

Its main feature is the profound C frame with a large space behind the welding tool to perform welds for products that usually require the detailed welding operation. The performances of machine guarantee the high quality and very strong, uniform and straight welding. New Models has HF welding surface along whole table, which means that upper electrode could have irregular, unusual shapes, like, circle different curves. Balacchi HF BR10PT1000 machine is equipped with numerous accessories that provide easier (and safe) job execution and fabric manipulation: press protection system, foot pedal, lasers guide, remote control, specially designed, personalised and engraved electrodes, easy electrode changing system, vacuum system for positioning materials, ect. Its welding table is slab-sided with wood to facilitate fabric sliding. It is always possible to upgrade the machine up to customer specific needs. Technical performances BR15PT1000/1200 Power 15-25 kW Pressing force 1200 kg Working frequency 27.125 MHz Total weight 1000-1400 kg Electrode 40 x 1000 mm (or on request) Power supply 400 V Distance between rod and generator 1000/1200 mm Pneumatic press drive
